Zyfire Kite Mark Nitrile Rubber Hose/BS 6391 with NBR Covered and Lining for Fire Fighting Agriculture Industrial

Product Description

Zyfire Kite Mark Nitrile Rubber Hose/BS 6391
Product Description
ZYfire Hose Corporation, founded in 2000, we research and produce Lay flat frac hose, fire hose, rack hose, industrial hose, forestry hose, snow-making hose, irrigation hose, drag hose, potable water hose, No-dig pipe rehabilitation liner, TPR layflat hose, hose couplings, landing valves and other fire fighting equipments.
Lexu-s Hose --- UL BS LR

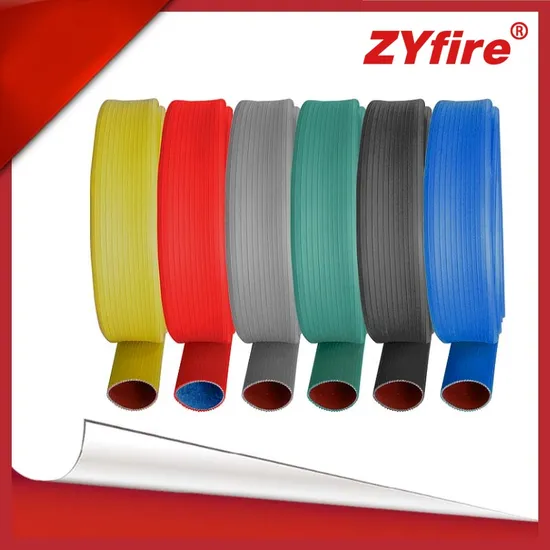

Nitrile Rubber Covered Hose
Reinforcement: Polyester filament.
Cover and Tube: Nitrile/TPR blend tube, thin rib on cover provides better performance in abrasion resistance.
Application: Large diameter hose for water supply, Municipal, Industrial Fire Fighting, Premium Solution.
Standard Length:15m (50ft), 30m (100ft), 50m (165ft), 100m (330ft).

ID	ID	Service Pressure	Minimum Burst Pressure
inch	mm	Psi/bar	Psi/bar
1 1/4"	32	200/14, 220/15, 250/17, 300/21, 400/28	600/42, 660/45, 750/51, 900/63, 1200/84
1 1/2"	38	200/14, 220/15, 250/17, 300/21, 400/28	600/42, 660/45, 750/51, 900/63, 1200/84
1 3/4"	45	200/14, 220/15, 250/17, 300/21	600/42, 660/45, 750/51, 900/63
2"	50	200/14, 220/15, 250/17, 300/21	600/42, 660/45, 750/51, 900/63
2 1/2"	65	200/14, 220/15, 250/17, 300/21	600/42, 660/45, 750/51, 900/63
2 3/4"	70	200/14, 220/15, 250/17, 300/21	600/42, 660/45, 750/51, 900/63
3"	75	150/10, 200/14, 220/15, 250/17	450/30, 600/42, 660/45, 750/51
4"	102	150/10, 200/14, 220/15, 250/17	450/30, 600/42, 660/45, 750/51
4 1/2"	115	150/10, 200/14, 220/15, 250/17	450/30, 600/42, 660/45, 750/51
5"	127	120/8, 150/10, 200/14	360/24, 450/30, 600/42
5 1/2"	140	120/8, 150/10, 200/14	360/24, 450/30, 600/42
6"	154	120/8, 150/10, 200/14	360/24, 450/30, 600/42
7 1/4"	184	120/8, 150/10	360/24, 450/30
8"	204	120/8, 150/10	360/24, 450/30
10"	254	120/8	360/24
12"	306	120/8	360/24
