Multi-Axis Slant Bed Turret Turning Lathe Machine 580tts-500 High Precision Double Twin Spindle CNC Turning Center with Y/C Axis

Multi-Axis Slant Bed Turret Turning Lathe Machine 580tts-500 High Precision Double Twin Spindle CNC Turning Center with Y/C Axis

US$28,500.00-182,000.00 1 Set (MOQ)

Basic Info.

Model NO.
580TTS-500
Type
Turret Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Control System
Fanuc, Siemens, Mitsubishi
Spindle
A2-6,A2-8,A2-11
Chuck
6,8,10,12inch
Tool Turret
Vdi or Bmt
Motor Power
11,15,18.5,22kw
Transport Package
Plywood Case
Specification
4500× 2600× 2400
Trademark
Oturn
Origin
China
HS Code
8458110090
Production Capacity
1000/Year

Product Description


Product Description

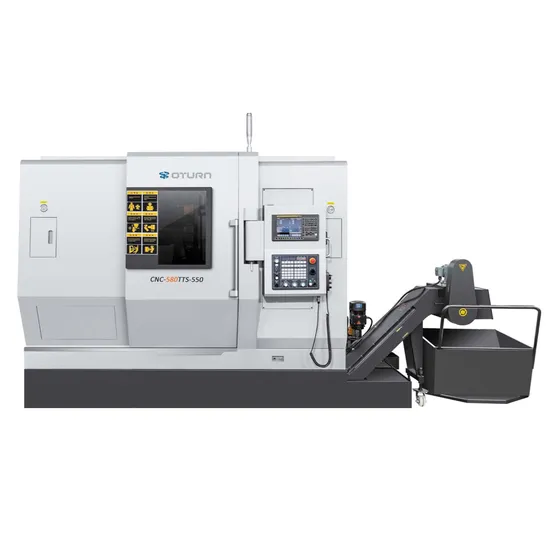

High rigidity, heavy cutting, and high stability. It adopts an integral cast inclined bed, a 45° inclined bed structure, and a thick reinforced rib design to minimize distortion and thermal deformation.
4-axis linkage simultaneous machining, dual-spindle dual-turret design, under the control of the multi-axis multi-channel CNC system and post-processing program, can not only complete 4-axis linkage processing, but also realize automatic U-turn processing of parts and simultaneous rough and finish turning , with a series of multi-functions such as two spindle processes that do not interfere with each other.
2 sets of feed axes. The highest configuration of this series has two sets of X, Y, and Z feed axes. Two sets of Y axes are hard-rail orthogonal Y-axis structures, providing the machine tool with sufficient milling capabilities.
Low resonance and high precision. When the equipment is processing in both directions at the same time, the maximum resonance value caused is less than 5%, and its performance is particularly outstanding. The static docking accuracy of the dual spindles can reach 0.005mm, and the synchronous docking accuracy can reach 0.01mm, which can meet most customer needs.
Modularization and flexible matching. In order to meet the needs of the market, the structure also has the characteristics of modular design, which can realize flexible structural matching according to needs.
Opposing dual spindles, the left and right sides can be processed at the same time, greatly shortening the processing time.
The upper and lower turrets are equipped with milling functions (the upper turret is equipped with a Y-axis) and can install up to 48 tools.
It can handle everything from small batches of multiple varieties to large-scale production. All processes can be completed with one clamping. Product Parameters

Item Specification
Bed The bed and base are made of high-quality cast iron, and the bed is slanted at 30°.
Processing range Maximum rotation diameter of bed 550mm
Maximum processing diameter of discs 245mm
Maximum processing diameter of the carriage 245mm
Maximum processing length of bar 540mm
Maximum rod hole diameter Main: Φ51mm / Auxiliary: Φ45mm (Chuck: Φ51mm)
Travel Feed Maximum travel of X1/X2 axis Diameter 440 / 360mm / Screw data 220 / 180mm
Maximum travel of Z1/Z2/Z3 axis 480/550/520mm
Y-axis maximum travel ±75mm
Chuck clearance 540mm
X1/X2/Z1/Z2/Z3/Y1/Y2 axis rapid movement rate 30m/min
X1/X2/Z1/Z2/Z3/Y1/Y2 screw diameter/pitch 40/10mm
X1/X2/Z1/Z2/Z3 linear guide width 35mm
X1/X2 axis servo motor β12 / β12 (brake)
Z1/Z2/Z3 axis servo motor β12/β12/β12
Y1/Y2 axis servo motor β12 (brake)
Servo turret motor 3N.m
Power head motor β22
Precision X1/X2/Z1/Z2/Z3/Y1/Y2 axis positioning accuracy ±0.003/300mm
X1/X2/Z1/Z2/Z3/Y1/Y2 axis repeat accuracy ±0.003/300mm
Spindle Spindle nose type Main: A2-6 / Auxiliary: A2-5
Spindle through hole diameter Main: Φ66mm / Auxiliary: Φ56mm
Spindle maximum speed Main: 4000 rpm / Auxiliary: 5500 rpm
Spindle servo motor power Main: 11/15KW / Auxiliary: 17.5KW
Hydraulic clamping system 8 inches / 8 inches (chuck)
Power head 90° power head (main/auxiliary turret) ER32 / 3000 rpm
0° power head (main/auxiliary turret) ER32 / 3000 rpm
Turret Turret specifications (main/auxiliary turret) BMT55/16 stations
Cutter size (main/auxiliary turret) 450mm
Tool holder specifications (main/auxiliary turret) 25×25
Boring tool holder (main/auxiliary turret) Φ40mm
Other Total capacitance 46KW
Machine tool net weight 7500Kg
Machine size (length*width*height) 4500×2600×2400


Products Configurations

Company Profile

Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
2.lf need ClF Price, please kindly tell us the port of destination.
