500ml 1L Pesticide HDPE Bottle Extrusion Blow Molding Machine

500ml 1L Pesticide HDPE Bottle Extrusion Blow Molding Machine

US$10,000.00-30,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SZ-55
Raw Material
HDPE
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
Video Technical Support, Free Spare Parts, Field I
Clamping System
Toggle Type Clamping System
Clamping Force
65kn
Station
Single Station or Double Station
Mould
One Cavity or Two Cavity
Auto-Deflashing
with Auto-Deflashing
Output Capacity
350-500 PCS/Hr
Output of HDPE
75 Kg/H
Application
Bottles, Jars, Jerry Cans, Gallons, Containers
Suitable Material
HDPE,PP,PVC,PS,PETG,LDPE
Transport Package
Film Packing
Specification
55II
Trademark
ShenZhou
Origin
Jiangsu, China
HS Code
8477301000
Production Capacity
15 Set/Sets Per Month

Product Description

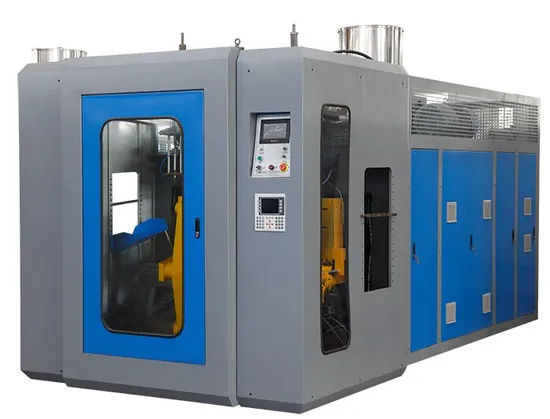

SZ-55II full automatic blow molding machine produces bottles max.1L. It is suitable for PP, PE, HDPE, PET, ABS, PVC, and so on. The precision design of the heater ensures even heating for getting perfect plastic products. The double station design is suitable for mass production to meet your production request in big quantity.
Technical Parameters: ( SZ-55II ) (Double station and double die heads)

Suitable material LDPE, PE.HDPE, so on
1L
Output capacity 350-500 pcs/h
Size 4.2X2.2×2.6(M)
Weight 5TSuitable materialMax volume
System Specification Parameters Note
Plasticizing system Summarize High efficient low power consumption plasticization system, transducer control,self-protect function when started at low temperature
Reducer Hard finishing, High intension, Low noise reducer
Screw ∮55 mm,L/D ratio 24, 38CrMoALA Cooling system available
Plasticization 75 Kg/H HDPE
Heating Zone 3 Aluminum Heater Automatic heating
Heating power 5 KW/H
Extrusion Motor Three-phase asynchronous motor
Cooling Fan 3 zone Automatic cooling
Extrusion system Summarize High-grade alloy steel, center feeding
Die head number 1
Center distance of die heads /
Max die mouth ∮170mm
Heating zone 3 Stainless steel heating cycle
Heating power 5~7KW
Clamping system Summarize
High intension, rigidity, center mold locking, stable mold opening, and clamping system
Clamping force 65KN
Template distance 420X350mm
Max mold size 400X350mm
Electric system Summarize
PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting, auxiliary function available)

TAIWAN WISETECH
system
Operate interface Touch screen, automatic self-diagnose alarm system
Temperature control The automatic temperature control module
Movement control TAIWAN WSIETECH, Chinese/English
Version
Electric protection Ampere overload, electric short circuit self-protection function
Hydraulic system Summarize Multiple function hydraulic integrated block Proportional control, high efficient
Servo system Three-phase asynchronous servo motor (380V/220V,50/60HZ)
Servo pump Japan Sumitomo
Valves Imported oil pump valves and connections
Oil pipes Double layer overpressure resistant
System pressure 60Kg/cm²
Cooling system Separate water cooling cycle, oil cooler cooling system
Pneumatic system Summarize Taiwan AIRTAC pneumatic system
Air pressure 0.6 Mpa
Air displacement 0.7M3/min
Electromagnetic valve Taiwan AIRTAC
Cooling system Summarize The separate cooling system of mold, barrel, and oil system
Cooling medium Water
Water flow 65L/min
Water pressure 0.3-0.6MPa

The main components of the machine
electronic parts
Name Trader
Micro computer control system TAIWAN WISETECH
Temperature Controller TAIWAN HUIBANG
Auxiliary Relay OMRON
contactor SOLID
Electric motor Three phase 220V or 380V
Power Source TAIWAN MEANWELL
Transducer ABB from SWIZERLAND
hydraulic parts
Name Trader
Oil pump TAIWAN HIGH-TECH
Valve YUKEN
Oil pump and connection YUKEN
Sealed part HALLITE
air control system
Name Trader
Cylinder AIRTAC
Air Valve AIRTAC
