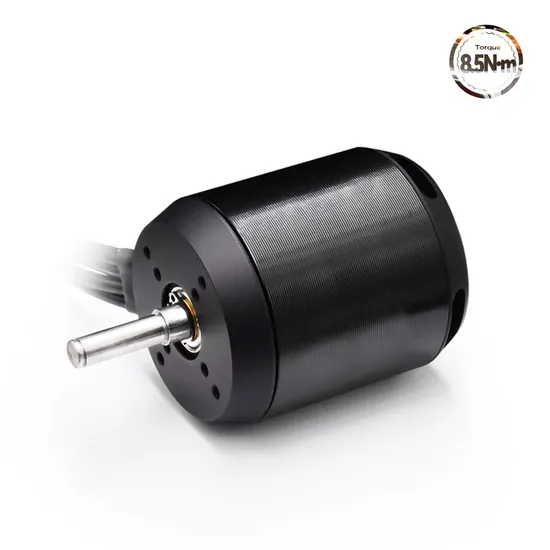

Freerc Motor MP6374 Kv170 RC Outrunner Brushless DC Motor for Electric Skateboard
Basic Info.
Model NO.
6374
Excitation Mode
Shunt
Function
Driving
Casing Protection
Explosion-Proof Type
Number of Poles
40
Structure and Working Principle
Brushless
Type
Z4
Certification
CE/RoHS
Brand
EV Craft
Rpm
7600
Kv
150/170/190/220(Customizable)
Effiency
89%
Max. Voltage
34V
Motor Weight
900g
Torque
8n.M
Li - Po
6s-12s
Peak Current
95A
Power
3250W
Idle Current
1.9A
Transport Package
Foam Box with Carton Box
Specification
63mm x 74mm
Trademark
EVCRAFT
Origin
Dongguan Guangdong China
HS Code
8503009090
Production Capacity
100000PCS/Year
Packaging & Delivery
Package Size
12.00cm * 12.00cm * 15.00cm
Package Gross Weight
1.200kg
Product Description
Product Specification:| Motor | MP6374 | Max power | 3250w |
| Max current | 90A | Max voltage | 6-12s |
| Max torque | 8Nm | Resistance | 0.05Ohm |
| ESC | VESC4/VESC6/3-12s 50A | Weight | 0.9kg |
| Motor length | 74mm | Motor diameter | 63mm |
| Shaft | 8/10mm | Wire | No.12 silicon wire |
