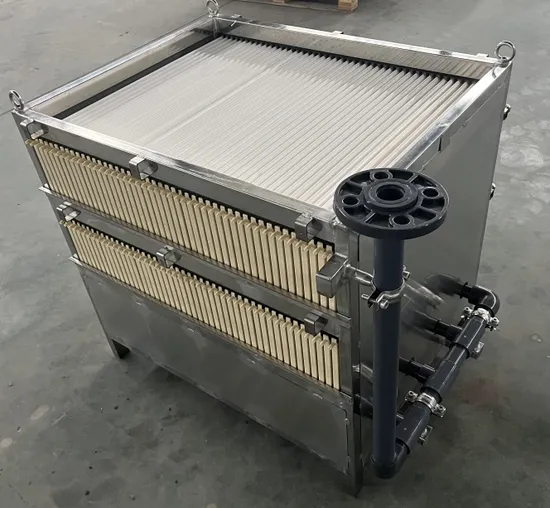

Ceramic Flat Membrane Module

Product Description

Membrane Module Parameters

Model	WMU-S-20	Model	WMU-S-20
Ceramic Membrane Model	WCF-620A-M0.1	Weight	160 kg
Membrane Area	20 m2	Membrane Frame Material	Stainless Steel
Size	720 x 790 x 1035 mm	Number of Membrane	120 pcs

Membrane Parameters

Model	WCF-620A-M0.1	Model	WCF-620A-M0.1
Membrane Area	0.176 m2	Diaphragm Mohs Hardness	> 4 Mohs
Size	620 x 150 x 12 mm	Pure Water Flux	1200-2600 LMH
Weight	0.72 kg	End Seal Material	PPO/PPS
Membrane Material	Al2O3	Adhesive	PU/Epoxy
Typical Pore Size Of Membrane Layer	<100 nm	Water Outlet	Hose Connection
Diaphragm Flexural Strength	> 50 Mpa	Operating Temperature Range	0-45 ºC
Porosity	>40%	PH Range	2-12

Advantages of Membrane Elements in Modules:
Ya'an Weclean's products have been applied to dozens of domestic and international projects, with 90% being overseas projects, accumulating extensive experience in the following water treatment fields.
Municipal Water Purification Rural Drinking Water Purification Seawater Desalination Pretreatment
Reuse of Recycled Water Municipal Sewage Treatment Industrial Sewage Treatment
Ya'an Weclean Environmental Protection Technology Co., Ltd.
Professional Ceramic Flat Membrane ODM and OEM
Weclean is a high-tech company that was established in 2018, focusing on the development and production of ceramic flat membranes, membrane modules, and technological solutions, with an annual sales volume of over 300, 000m2.
The company has been involved in dozens of projects both domestically and internationally, has established deep collaborations with large water treatment companies, and is highly favored by the market.
Weclean is committed to driving technological innovation in the water treatment industry through exceptional products and services. The whole water treatment industry and environmental governance have brought new value and experience to the "membrane" product.
