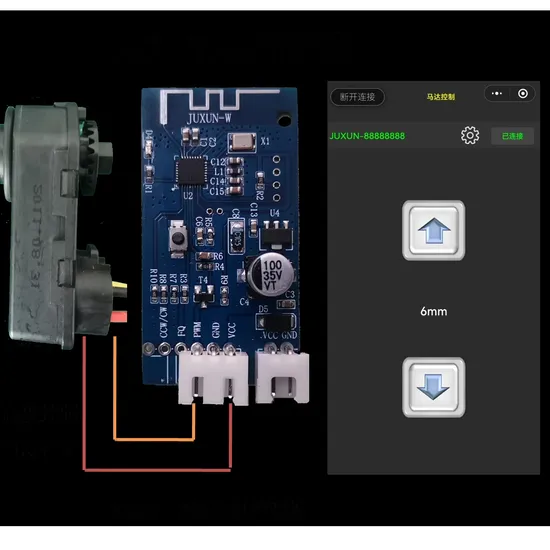

Bluetooth Timing Switch Control Module for DIY Robots Wireless Control Module

Product Description

Support Customized Development And Production Of Wireless Intelligent Module Pcba/App/Md.
Do You Plan To Customize The Design Products?
Talk To The Chief Design Tam About Your Product Ideas!
Think about your ideas with a "pens": conceptualize and innovate design concepts and obsessions from the tip of a pen and make prototypes for project owners.
" PENSVOX" specializes in project product prototyping for crowdfunding project owners, innovative tech startups and new technology companies.
Discover for them how to make, discuss, improve and build ideas.
Q:Regarding the app that connects to the smart ring, it complies with GDPR and CCPA.
Q: Regarding the application connected to the smart ring, it complies with GDPR and CCPA.
A: No registration on the app, you can directly log in to the connected device, and the stored information is
A: No need to register on the app, you can directly log in to the connected device, and the stored information is
Product Parameters

Product Name	Wireless Control Module	Function	Wireless Smart APP Control
Power supply	Customized 3.7-12V	Application	Android IOS
MOQ	100pcs	Transmission rate	1000Kbps
Chip	JL	Working mode	wireless bluetooth

Chapter 2 Basic Function List
1. Chip: MT2503/MTK3333/MTK5931
2. Memory: 32M Flash Memory
3. RF power amplifier: RDA6625E
4. Main board stacking size: 20x35x5mm
5. Working environment temperature: -20 ºC -+70 ºC
6. Working environment humidity: 20% -80 MRH
7.SIM card: nano sim k, compatible with side insertion and flip (default)
8.GSM frequency band: 850MHz/900MHz/1800 MHz/1900MHz
9.GPRS: Class 12
10 batteries: 3.7V/3.8V2000mAh
11. Average standby current: less than 2ma (depending on the connection method)
12. Sensors: 3D G-Sensor (PhD 250/253)
13.GPS Beidou accuracy: within 10 meters
14.WIFI positioning accuracy: within 50 meters
15.GSM positioning accuracy: 50-200 meters (depending on network conditions)
16. Speed accuracy: 0.1 meters/second
17.GPS positioning time: Cold start -38s (Open sky) Hot start -2s (Open sky) Different due to environmental impact
18.GSM antenna: PIFA antenna
19. standby time: determined by battery capacity and connection method
20. working voltage "3.5-4.2V (automatic shutdown at 3.4V low power)
21. Charging current: Charging 5V-600mA miro
22.GPS antenna: high-performance 15X15x2mm ceramic antenna
23. developer testing: locate once every 1 second, report gsm socket every 4 seconds
24.TF memory card: maximum 32GB c12
25. Bluetooth: Bluetooth 3.1
26. Horn: 2W 0916
27. Motor: Motor 2.8V 600ma
28. button "On/Off" button, 2 external GPIOs, reset
29. Short circuit switch: power-on function
30.LED tricolor light: satellite signal light, sim signal light, power signal light
31.USB: Expansion port x1. Comes with microx1
32. serial port: TTL TX RX GND
