Minimeta Handheld Two Alarm Points Hydrogen Sulfide H2s Gas Analyzer

Product Description

Product Description

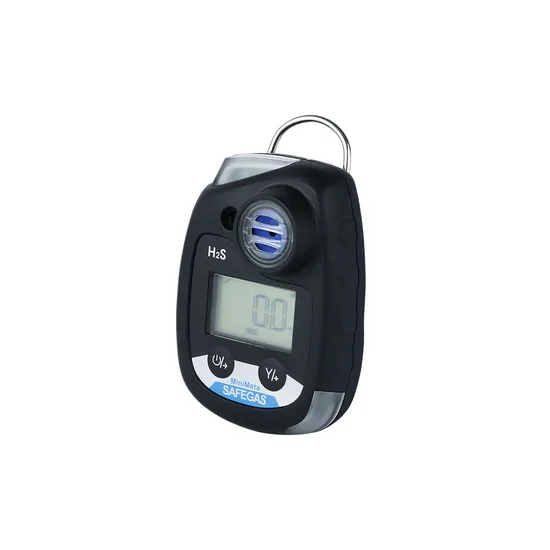

MINIMETA handheld two alarm points Hydrogen sulfide H2S gas analyzer Overview
MiniMeta is a maintenance free single gas detector that is the most reliable, user-friendly, and cost-effective detection solution to ensure worker safety and operational compliance. It provides up to 2 years of protection - no calibration, no sensor replacement, no battery replacement or battery charging required. Passed IECEx, ATEX, and CNEX explosion-proof certifications, meeting the highest standards of quality and reliability, ensuring your safety and compliance. Compact, sturdy, ergonomic, and can be secured to work clothes or hats through crocodile clips, making it easy to carry.
It can detect conventional toxic and harmful gases such as carbon monoxide, hydrogen sulfide, oxygen, and sulfur dioxide, and is widely used in industries such as petroleum and petrochemical, metallurgy, and chemical engineering for personnel protection and gas detection.
Feature
* Low power and long standby, with a standby time of up to 2 years, without the need to replace the battery.
* Maintenance free: Just turn on the device and it can run continuously - no calibration, no sensor replacement, no battery
charging required.
* Automatic Self check function to improve safety.
* Ultra high buzzer alarm sound, 2 bright red LED for LOW and HIGH alarms, and triple alarms for sound, light, and vibration.
* High alarm, low alarm, TWA, STEL multiple alarm types, allowing users to adjust alarm setpoints as needed throughout the entire lifecycle.
* Automatically record 10 recent alarm events for easy and accurate record keeping.
* Protection level IP66/IP68, waterproof, dustproof, explosion-proof, shockproof, intrinsically safe circuit design.
* Compact and lightweight design, two button operation, without the need for extensive training.
* Economical and low cost, Small size, light weight, and easy to carry.
* The shell is made of high-strength materials, designed specifically for various harsh environments, making it comfortable and durable.

Sampling method	Diffusion type
Gas type	Minimeta-NO
Measure range	0-20, 50PPM,100PPM, 250PPM
Resolution	0.01PPM, 0.1PPM
Sensor Principle	Electrochemical principle
Response time	≤30 seconds
Language	Chinese/English
Accuracy	≤±3%FS or ±10%
Measure unit	PPM, mg/m3, % VOL μ Mol/mol
Display	gas name, concentration unit, measured value, electrical quantity
Alarm	sound, light, vibration alarm, and high and low alarm values can be set
Battery	3.6V dry battery (non rechargeable)
Working hours	2 years
Explosion-proof grade	ExiaIICT4Ga
Protection grade	IP66/IP68
Standards	GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-2008, IEC 60079-0-2017, IEC 60079-11-2011
Working temperature	-20ºC~+55ºC
Humidity	0~95%RH(no condensation)
Environmental pressure	86~106Kpa
Size	90 * 60 * 33mm (length * width * thickness)
Weight	125g
