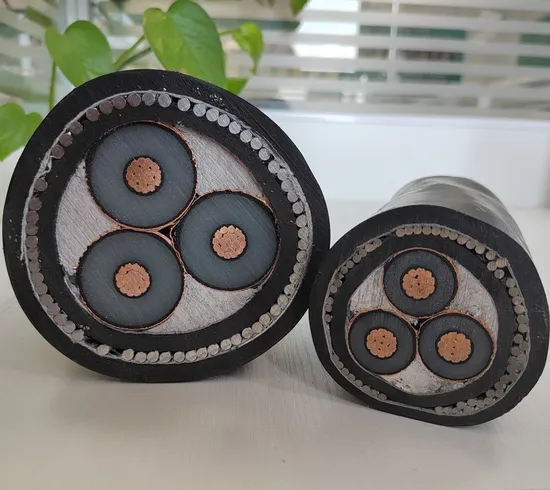

Copper Conductor XLPE Insulated PVC Sheated Swa Armoured Power Cable - New Design
| US$5.00-20.00 | 500 Meters (MOQ) |
Basic Info.
Model NO.
YJV32
Current
DC & AC
Insulation Material
XLPE
Sheath Material
PVC
Material Shape
Round Wire
Wire Core Material
Red Copper Wire
Certification
ISO
Model
Yjv23
Brand
Guowang
Conductor
Stranded/Flexible
Rating Grade
3-35kv
Color
Black
Package
Drum
Core Type
Single or Multi
Transport Package
Drum/According to Your Need
Specification
3*120, 3*185, 1*95, 1*300
Trademark
Guowang Cable Group
Origin
China
Production Capacity
1000000m/Year
Packaging & Delivery
Package Size
1000.00cm * 1000.00cm * 800.00cm
Package Gross Weight
100.000kg
Product Description
Product DescriptionMedium Voltage Underground Cable 8.7/15KV Copper Conductor XLPE/PE Insulation Armored Power Cable
Construction
AL/XLPE/STA/PVC Armoured Electrical Cable:
- Round bare aluminum core stranded according to IEC 60228
- Inner semi-conductive layer
- Core insulation XLPE
- Color code according to HD 308 S2
- Outer semi-conductive layer
- Semi-conductive tape
- Copper tape screen
- Filler
- PVC inner sheath
- Galvanized steel tape armour (STA)
- PVC outer sheath (red or black)Description
XLPE insulated power cable has a number of advantages over paper insulated and PVC insulated cable. XLPE power cable has highelectric strength, mechanical strength, high-ageing resisting, environ metal stress resisting anti-chemical cross, and it issimple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.Application
These power cable for fixed installations such as distribution networks or industrial installations. Such as Plant engineering;Industrial machinery; Heating and air-conditioning systems; Power stations; Stage applications etc. Product Parameters
| Rated Voltage: | 6/10kV, 6.35/11kV (12kV), 8.7/15kV, 12/20kV, 18/30kV,19/33kV |
| Core Number: | Single Core or Three Core (1C or 3C) |
| Available Dimensions: | 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2. |
| Codes Available: | N2XSY, N2XSEY, NA2XSY, NA2XSEY, N2XSRY, NA2XSRY, N2XSEBY, N2XSEYBY, NA2XSEBY, N2XSERY, NA2XSERY, N2XSEYRGbY, NA2XSEYRGbY, N2XS(F)2Y, NA 2XS(F)2Y, N2XS(FL)2Y, N2XSH, N2XSYRY |
| YJV, YJLV, YJSV, YJLSV, YJV72, YJLV72, YJSV72, YJLSV72, YJV22, YJLV22, YJSV22, YJLSV22, YJV32, YJLV32, YJSV32, YJLSV32 | |
| Application: | For power networks, underground, outdoors and in cable ducting. It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed, so that the safeguarding of persons and the integrity of the product will not be affected during installation. |
| Construction: | |
| Conductor: | Stranded round compacted copper or aluminum conductor (Cu / Al ), copper wire annealed. |
| Conductor Screen: | Semi-conducting material |
| Insulation: | XLPE (Cross-Linked Polyethylene) |
| Insulation Screen: | Semi-conducting material |
| Metallic Screen: | Copper tape screen or copper wire screen (CTS / CWS ) |
| Filler: | PP rope |
| Separator: | Binding tape |
| Bedding: | PVC (Polyvinyl Chloride) |
| Armouring: | Single Core: Aluminium Wire Armoured (AWA) Multi-core: Steel Wire Armoured (SWA) or Steel Tape Armoured (STA) |
| Sheath: | PVC (Polyvinyl Chloride), flame retardant PVC, PE, LSOH, HFFR |
| Colour: | Red or Black |
| Temperature Rating: | 0°C to 90°C |
| Minimum Bending Radius: | Single Core: 15 x overall diameter Three Core: 12 x overall diameter (Single Core 12 x overall diameter and 3 core 10 x overall diameter where bands are positioned adjacent to joint or terminations provided that the bending is carefully controlled by the use of a former) |
