Used Engine Oil Refinery Plant 15ton Per Batch

Product Description

1.Technical parameters

NO.	Name	Parameter
1	The raw materials:	sludge oil
2	Daily capacity:	15 ton/day
3	The size of reactor	2800*6600mm 16mm thickness
4	Reactor material	Q345R
5	Average oil productivity:	30%-80%,
6	Average carbon productivity:	20%-35%
7	oil rate	30%-80%
8	pyrolysis time	8-10 hours
9	Discharge time	1.5 hour
10	Feeding time	3 hourS
11	Cooling time	3 hours
12.	Working pressure	Normal /slightly negative
13	Power	21 kw
14	Fuel	Coal. Wood, gas etc
15	Working area	1000 square meters
16	Total weight	35 000kgs
17	Reactor rotate speed	0.25-0.4/min
18	Noise	No less than 85DB
19.	Certificate	Ce,.iso,
20.	Carbon slag out	Automatic

2. Major parts :

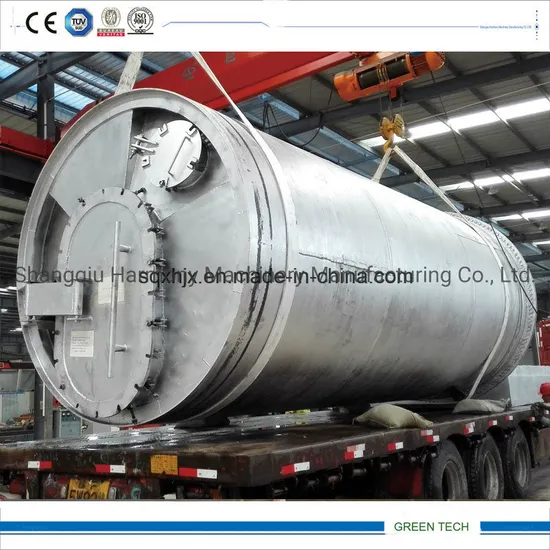

reactor with base and cover
oil -gas separator
heavy oil tanl
cooling system
light oil tank
water sealing
dedust system
waste gas recycle system
slag out device
control board
3. Work flow
loading plastic into reactor
heating reactor
after heating , solid plastic converted to oil gas
oil gas go into oil-gas separator ,heavy oil deposit and go to heavy oil tank, light oil gas go to cooling system
after cooling ,light oil gas change to liquid oil and go into light oil tank
non-liquid oil gas will to water sealing tank, then back to combustor burning to heat reactor as fuel
smoke produced by heating reactor will go to dedust system, after dedust system treatment , smoke change to white clean waster steam ,then go to sky through chimney.
5. Plant features:
1)Carbon slag using new tech, slag in sealing way, keep sure no carbon powder flay in air, completely pollution free. Carbon slag automatic and slag more fast than normal design
2)Improved an simplified design of plant, more easy to use, and cut down plant cost
3)All parts including small parts we use high standard material to keep our quality for long term usage.
4) Dedust system use latest design, no black smoke emit to air by chimney.
6.oil parameter

Items	Parameters
Oxidation stability	2.0
Sulfur content (%)	0.05
10% residue carbon content( %)	0.25
Ash content (%)	0.016
Copper corrosion grade	1.1
Moisture content (%)	-
Mechanical impurities	none
Density	0.85
Freezing Point /°C	0
Flash point)/°C	40
Kinematic viscosity	3.5
Combustion value( kcal)	8000
Chromaticity	1.2
Cetane index	43

7.About us
Shangqiu Harmony Machinery Manufacturting Co.,LTd. is a professional manufacturer engaged in the research, development, production, sale and service of Environmental machines, waste tire/rubber/plastic pyrolysis equipment, waste oil distillation machines, etc.

We have rich experience(8 years experience) in making and installation shangqiu harmony is the top 10 enterprise in disposing waste rubber and plastic.
Now our new tech is crude oil refining and city life trash recycling.
Which convert waste to energy without pollution .
