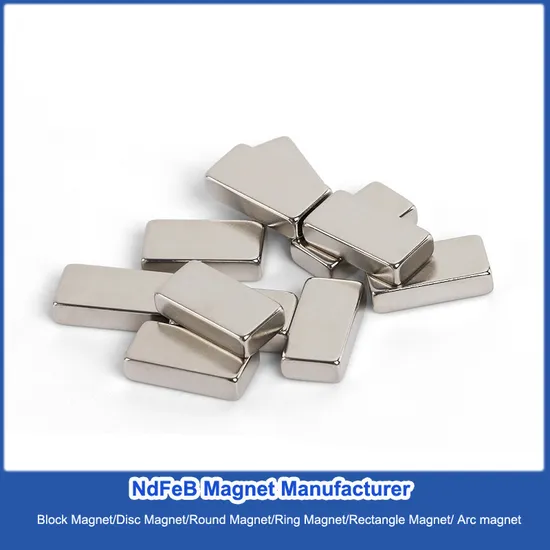

Rare Earth Permanent N35/N38/N40/N42/N45/N48/N50/N52/N55 Neodymium Sintered Block Dics Cylinder Arc NdFeB Magnet
| US$1.00-20.00 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
es-0021
Coating
Zn/Nicuni/Epoxy/Sn/Silver/Au
Grade
N33-N52m/H/Sh/Uh/Eh
Material Name
NdFeB
Direction of Magnetization
Axially, Diameterically
Certification
RoHS, Itaf16949
Leadtime
30days
Transport Package
Foam+Carton
Specification
Customized
Trademark
OEM/ODM
Origin
Ningbo City
HS Code
85051110
Production Capacity
1000000000
Packaging & Delivery
Package Size
35.00cm * 27.00cm * 15.00cm
Package Gross Weight
3.000kg
Product Description
Rare Earth Permanent Neodymium Sintered Block Dics Cylinder Arc NdFeB Magnet Product DescriptionMagnet Category
Product Parameters
| Magnet Parameters | ||
| Material | Rare Earth NdFeB/Neodymium Permanent Magnet | |
| Magnet Shape | Rectangular/Disc/Round/Cylinder/Ring/Cube/Countersunk Hole/Arc Shape/C Shape/Trapezoid shape/Magnetic Ball/Other special shapesh | |
| Material Grade | N35-N52 | |
| Material density | 7.6 g/cm3 | |
| Magnetization direction | Axial magnetization Radial magnetization | |
| Magnet coating | Nickel-plated copper-nickel/Black Epoxy/Znic/Au-18K | |
Corresponding material temperature resistance working temperature | material grade | maximum operating temperature |
| N25-N55 | 80°C (176°F) | |
| N33M~~N54M | 100°C (212°F) | |
| N33H~~N54H | 120°C (248°F) | |
| N30SH~~N52SH | 150°C (302°F) | |
| N30UH~~N45UH | 180°C (356°F) | |
| N30EH~~N42EH | 200°C (392°F) | |
| N30AH~~N35AH | 220°C (428°F) | |
| Magnet Application | Rectangular magnet: linear motor, EV-motor, Sensor; Automatic Door&Window; Lifting Machinery ;Packages | |
| Disc/Round magnet: Consumer Electronics, Packages;Magnetic Separator;Magnetic sticker; Magnet Rod; Magnetic Filter; Office Sticker | ||
| Ring Shape/Countersunk Hole: Stepper motor;Door Latch;Pot Magnet; Fishing Magnet | ||
| Cube/ball: Toys | ||
| Arc/C shape/ Trapezoid shape: Elevator Tractions, Smart Motors, Servo Motors, Oilfield Motors, DC Driven Winder Generators, Magnetic Pumps, Textile Motor; Refrigeration Motor | ||
Company Profile About Eason Magnets
1, Eason Magnets has been involved in R&D, manufacturing and sales of permanent magnets since the 2011.
2, Supplier of neodymium magnets, ferrite big block, magnetic ball, AlnICo Magnets, Smco Magnets, Fishing Magnets, Pot Magnets.
3, Customized magnet design in terms of composition, magnetic characteristics, shapes, and sizes.
