CNC Door Leaf Horizontal Four-Side Saw (Automatic Centering, Evenly Dividing The Two Side Frames)

Product Description

CNC door leaf horizontal four-side saw (automatic centering, evenly dividing the two side frames) MJK6424C1
Function:
The machine is special for door four edges precise sizing to requested size.
Feature:
1. Design of main & scoring saw ensures cutting without edge broken.
2. With smashing cutter to smash waste strip, longitudinal saws group can tilt to meet demand of cutting bevel edge at 0-5 degree.
3. Automatic push the door to machine center in lengthwise direction to evenly cut both side waste material.
4. Automatic adjustable vacuum sucking worktable, to satisfy demand of door leaf's size frequency change.
5. Through-feed automatic feed-in & feed-out, feed-out direction could be forward or backward, to satisfy demand of single machine use and compose a line.

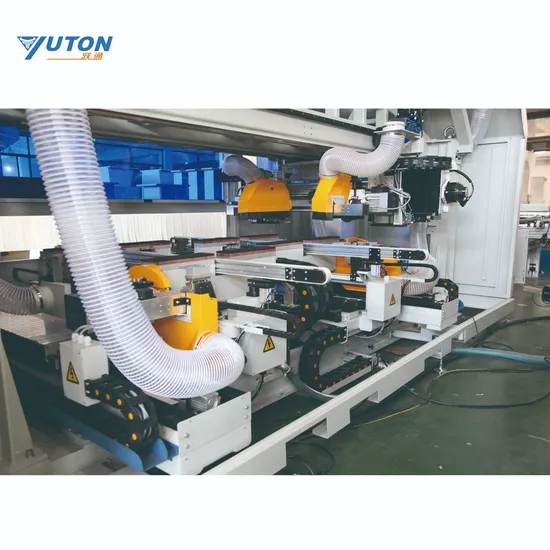

Saw group
Connect with other machines to be full automatic line
Customer workshop
Technical specification:

Workpiece length	1800-2400mm
Workpiece width	500-1100mm
Workpiece thickness	30-60mm
Main saw motor	3*7.5kw
Scoring saw motor	3*1.5kw
Max moving speed of sawblade	40m/min
Max cutting & smashing waste strip width at each edge	10mm
Overall dimensions	5600*3100*2100mm
Weight	5000kg
Voltage	380V, 50HZ, 3Phase

CNC door four edge saw MJK6424H
Function:
The machine is special for door four edges precise sizing to requested size.
Feature:
1. Design of main & scoring saw ensures cutting without edge broken.
2. Four saw group with smash knife to remove excess material.
3. Automatic push the door to machine center in lengthwise direction to evenly cut both side waste material.
4. Length & width two-way automatic adjustable vacuum sucking worktable, to satisfy demand of door leaf's size frequency change.
5. Automatic feed-in & feed-out, feed-out direction could be forward or backward, to satisfy demand of single machine use and compose a line.
6. Bar code scanning, automatic lubrication.
Machine inside:
Customer workshop
Main difference between MJK6424C1 and MJK6424H:

Item	MJK6424C1	MJK6424H
Efficiency	75 seconds per door	50 seconds per door
Feed in direction	Lengthways	Transverse (need additional feed in table and feed out table)
Sawblade quantity	Three group (each group including one main saw and one scoring saw)	Four group (each group including one main saw and one scoring saw)
Process step	As per below drawing	As per below drawing
Connected in automatic line	Available	Available
Optional with barcode scan function	Available	Available
