CNC 4 Rolls Plate Rolling Machine Bending Rolls Roller W12-110*3000

Product Description

W12NC 4 rolls plate rolling machine
CNC 4 rolls plate rolling machine bending rolls roller
Introduce:
The machine adopts the four-roller structure with the upper roller as the main drive.
The equipment has the function of pre-bending the end of the plate. The metal sheet can be loaded at one time, and the plate end pre-bending and the roll forming of the workpiece can be completed without turning.
The upper working roller of this machine is the main driving roller. The lower roller and both sides of the roller adopt hydraulic transmission. The lifting displacement is controlled by the computer, automatic leveling, screen display, and the tilting and resetting of the turning bearing body to adopt hydraulic transmission. The tail of the upper roller Equipped with a balance mechanism to facilitate the unloading of the rolled workpiece and cylinder. Equipped with a mobile independent operating table, which can be moved and operated at any time, and the machine is equipped with a safety interlock device. The machine has a high technical level, complete functions, high precision, and easy operation. It is the most ideal model for rolling round, arc, and conical workpieces in industries such as energy, transportation, petroleum, chemical industry, boilers, shipbuilding, hydropower, and metal structures.
Technical Parameter:

Model	The thickness of the sheet(mm)	Max pre-bending thickness(mm)	Width of the sheet(mm)	Yield strength of the sheet(Mpa)	The diameter of the upper roller(mm)	Main motor(KW)
W12-4*1500	1-4	3	1500	245	140	3
W12-4*2000	1-4	3	2000	245	160	4
W12-6*2000	1-6	5	2000	245	170	4
W12-6*2500	1-6	5	2500	245	190	5.5
W12-8*1500	1-8	6	1500	245	190	5.5
W12-8*2500	2-8	6	2500	245	220	7.5
W12-12*2000	3-12	10	2000	245	240	7.5
W12-12*2500	3-12	10	2500	245	260	11
W12-16*2000	3-16	12	2000	245	260	11
W12-16*2500	3-16	12	2500	245	280	11
W12-16*3000	3-16	12	3000	245	340	15
W12-20*2000	3-20	16	2000	245	280	11
W12-20*2500	3-20	16	2500	245	340	15
W12-25*2000	4-25	20	2000	245	340	15
W12-25*2500	4-25	20	2500	245	380	22
W12-25*3100	4-25	20	3100	245	420	30
W12-30*3000	4-30	25	3000	245	1300	37
W12-40*3000	4-40	32	3000	245	1300	45
W12-50*3000	4-50	40	3000	245	1800	55
W12-60*3000	4-60	50	3000	245	2000	55

Working principle:

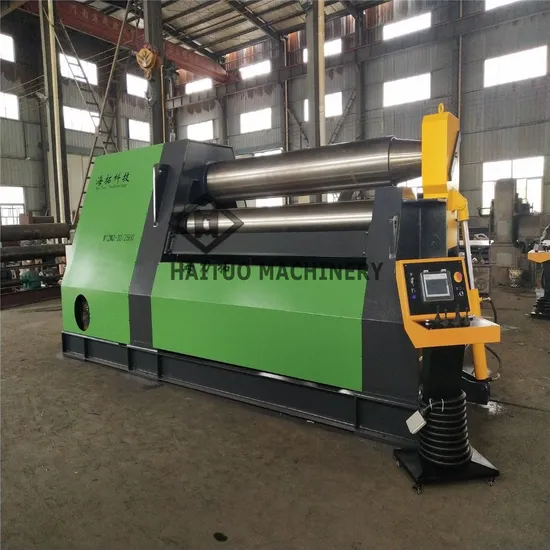

View of machine
Sales team:
Application Consulting: Our consultants understand the application of bending and shearing technology. We are always ready to provide you with information about products, prices, technology, industry solutions, etc., and share our valuable knowledge to help you develop optimized solutions.
Inspection reception: You can make an appointment to visit the exhibition hall and visit the company on-site inspection. We will provide you with a professional receptionist.
Service after sale:
At the same time, we also attach great importance to services, the company's service mechanism: customer return visits, continuous improvement, rapid response, efficient and accurate, to ensure stable and efficient operation of products, to a large extent to help customers improve economic efficiency. The advanced nature of technology is the guarantee of product quality, and the company will have completely independent intellectual property rights.
Maintenance:
Two years of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.
Preventive maintenance:
Depending on your needs, we can perform a regular preventive overhaul on your machine or repair it when you need it. Regularly adjust and calibrate the guaranteed performance of the machine. Some potential problems can also be resolved before they break out to avoid affecting production efficiency.
Service outlets:
We have established a comprehensive marketing network in China and the international marketing network is constantly evolving. You can check out our service network on our official website. After-sales service response time is 24 hours. You can call a service call or send an email. The after-sales engineer will give a clear response within 24 hours or confirm whether it is necessary to go to the equipment site.
Online service:
We have established a variety of online service channels, you can contact us through customer service phone, customer service email, website online, website message, and other channels to get the services you need.
Spare parts:
To use original spare parts and consumables can optimize machine productivity. We can guarantee that there are enough spare parts and guarantee a preferential price and fundamentally to control the quality of the repair.
It is our commitment to fix all problems as quickly as possible after they are brought to our attention. If you have any questions about our support policies please contact us.
For more product details, please email us.
