Multi Functions 13-15t/H Soybean Cleaning Machine
| US$11,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
5CC-15
Application
Cleaning
Condition
New
Warranty
One Year
Power
27.5kw
Overall Size
4600*2500*4500mm
Transport Package
Nude
Trademark
BEIBU
Origin
Shijiazhuang, China
HS Code
8437109000
Production Capacity
200sets/Year
Product Description

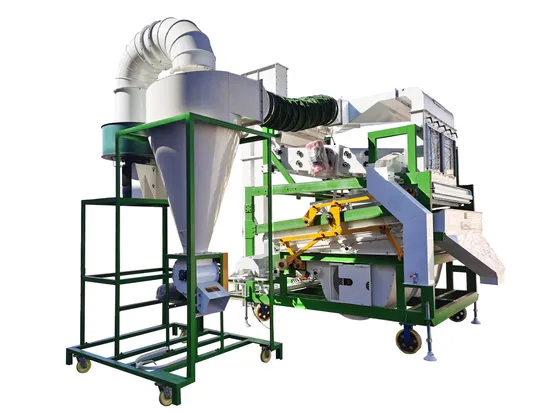

12-14t/h Soybean Cleaning Machine 5CC-15 Combined CleanerWorking Principle
•The raw grain go to machine by elevator,first go through the vibration grader with two layers for removing the large and small impurities,at the same time the grain evenly scattered on the sieves,front and back air screen part and the outside cyclone system will suck the dust and light impurities out ;
•Then the grain will go to the gravity table which is for removing the small sticks,lighted and moldy grain,half beans etc.;
•All the impurities which removed by gravity table can separate to three different by the two sieves layers in the outlet.
Machine Structure
The Impurities the machine can remove
Machine Specification
| Model | 5CC-15 Combined Cleaner |
| Sieve Size | 2000mmx1500mm |
| Power(kw) | Fan motor: 11KW Vibration motors: 0.55X2KW Gravity table Fan Motor:11KW Gravity table vibration motor:2.2KW Elevator:2.2KW Total in:27.5KW |
| Capacity(t/h) | 12-14t/h based on soybean |
| Weight(kg) | 4500 |
| Overall Size L×W×H(mm) | 4600*2500*4500mm |
| Voltage | 380V, 50HZ, three phases |
