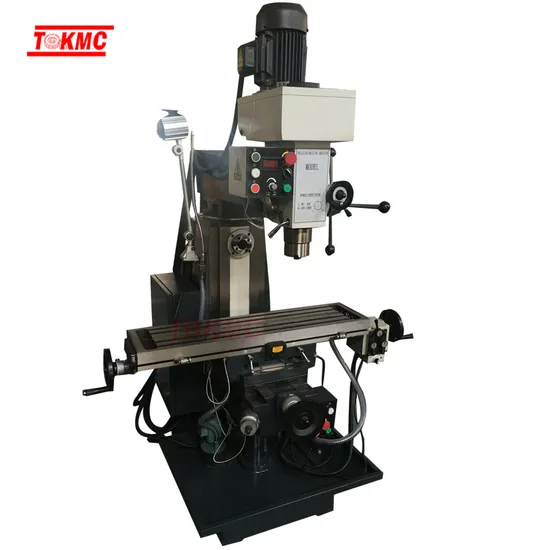

Tu60s Universal Milling Machine Milling Drilling Machine
| US$1.00-10.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TU60S
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Machine
Variable Speed Milling Machine
Guideway
Dovetail
Gear Parts
Hardened and Ground Table Surface
Milling Head
Swivel 45 Degree
Function
Milling and Drilling Machine
Electrical System
Ce Standard
Coolant Pump
Standard Machine Tools
Spindle Taper
Mt4 ISO40
Table Size
1000X240 mm
X Axis Motor
370W
Spindle Travel
120mm
Max. Tapping
M16
Max.Weight on Worktable
200kg
Digital Readout
Sino Brand
Usage
Milling ,Drilling Tools
Transport Package
1290× 1220× 2100mm
Specification
850kg
Trademark
tokmc
Origin
Shandong China
HS Code
84592900
Production Capacity
100 Sets/Year
Product Description
Universal Milling Machine Milling Drilling Machine Feature :Headstock swivels ±45°.
Spindle sleeve feed,automatic with 3speeds right-/left-handed rotation for threading.
Drill depth stop with display of measurement.
Optional :
-Power feed on X,Y axes
-Digital readout
-table swivel 45 degree
-clamping kit, rotayr table, universal dividing head, drilling chuck, protection guard
| Item | TU60S |
| Spindle taper | R8/MT4/ISO30/ISO40 |
| Distance from vertical spindle nose to table | 70~420mm |
| Distance from horizontal spindle centerline to table | 0-280mm |
| Distance from vertical spindle centerline to column | 220-700mm |
| Distance from horizontal spindle centerline to ram bottom | 170mm |
| Spindle speed range | (H) 8steps, 60-1350r.p.m (V) L:90-425r.p.m./H:425-2100r.p.m. |
| Swivel angle of milling head | ±45° |
| Table size (L×W) | 1000x240mm |
| Max.rotations angle of tadle | ±45° |
| Table travel (X/Y/Z) | 500x200x350mm |
| Table longitudinal & cross feed | 4 steps, 7-42mm/min |
| Table vertical feed (Z) | |
| X,Y-axis rapid feed speed | 800mm/min |
| Z-axis rapid feed speed | |
| Feed motor power | 370w |
| Max.loading of worktable | 200kgs |
| Table T-slots (No./Width/Pitch) | 3/14mm/60mm |
| Z-axis guide way type | Dovetail |
| Y-axis guide way type | Dovetail |
| X-axis guide way type | Dovetail |
| Main motor power | (V)2.2KW (H)1.5KW |
| Overall dimensions (L×W×H) | 1290X1220X2100mm |
| Packing size (one/two sets) | 114x134x222cm |
| N.W (one set) | 850kgs |
