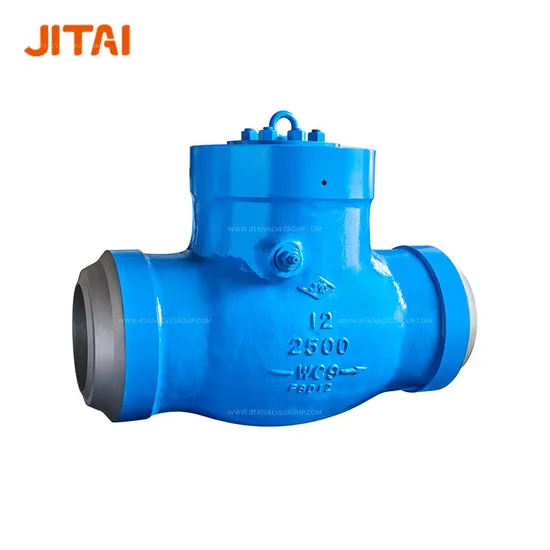

Cast Steel Swing Pressure Seal High Temperature High Pressure Steam Check Valve with Acceptable Price

Product Description

Product Description Introduction
Check valves are automatic valves, which are mainly used in pipelines where the medium flows in one direction, and only allow the medium to flow in one direction to prevent accidents.
Features
1.The middle cavity of the valve adopts a pressure self-tight sealing structure. The higher the pressure in the inner cavity, the better the sealing performance.
2.Both ends can be connected by butt welding, which is suitable for different pipe connection requirements.
3.The valve pressure bearing parts are made of high-quality heat-resistant alloy steel, which has good high-temperature performance, high pressure resistance, durability, safety and reliability.
4.The sealing surface of the valve disc and valve seat is made of stellite cobalt-based hard alloy surfacing welding, which is wear-resistant, high temperature resistant, good scratch resistance and long service life.
5.The valve disc rotates around the pin shaft outside the valve seat to reduce the violent impact when closing.
6. The built-in pin structure reduces external leakage points and is more reliable in use.

Scope

Nominal size	2"~24"(DN50~DN600)
Nominal pressure	Class 900~2500(PN160~PN420)
Standard	BS1868, API594,ASME B16.34
Body material	Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
End connection	RF, BW, RTJ

Product Parameters
Company Profile
Jitai Valve Group is a genuine valve manufacturer. 7000-sqm factory 100 employees 5+ senior engineers 30+ design patents 2 million sets of valves delivered 20 million USD annual revenue Since 1988, we have been expert in manufacturing a wide scope of industrial valves including: Gate valves Globe valves Check valves Ball valves Butterfly valves API valves Steam valves High pressure valves High temperature valves Power Plant valves Our Advantages Heavy-duty valve expert with proven expertise in harsh environment; Stringent quality control and traceable reports to provide zero-defect products; Rugged and durable configuration according to API, ASME, BS, JIS, EN standards; All kinds of UG, PRO/E, Solidworks software simulations ensure the efficiency and robustness for tailored components; FAQ
1.Q:Are you are a trading company or manufacturer?
A:We are a manufacturer with 7000-sqm factory and 100 employees.
2.Q: Can you provide the assembly drawing for confirmation ?
A: Yes, we can give the relavant drawing within 24 hours.
3.Q: Can you do non destructive test for valve components ?
A: Yes, we can perform radiographic testing, penetration testing, ultrasonic testing, magnetic particle testing, etc
4.Q: How can I vist you when I am in China?
A: We are near the Wenzhou Airport. If you take a plane, it takes 2 hours to reach our factory from Shanghai, 2 hours from Guangzhou, 3 hours from Beijing.
5.Q: Can we take sample for quality check?
A: Definitely. You can advise the model number and we will prepare the sample within 7 days.
6.Q: How can I become your distributor or agent?
A: You can send your company profile and reference list to our sales manager.
7.Q: Can you help with site maintenance and commissioning?
A: Yes, we are glad to offer our assistance whenever you need it. We can send our after sales team to address the issue within 14 days
