Wholesaler 4.3 Inch Mini Tablet PC Industrial Panel PC All-in-One PC

Product Description

Wholesaler 4.3 Inch Mini Tablet PC Industrial Panel PC All-in-One PC

Wholesaler 4.3 Inch Mini Tablet PC Industrial Panel PC All-in-One PC
1.Parameters

Product model	WLT-043R-AP20
Basic parameters	CPU: Cortex -A8 architecture,frequency 1.0GHZ Memory: 512MB DDR3 Flash:256MB NandFlash
Display screen	Size:4.3 inch Resolution:480×272 Wide-temperature type,64K colors or 260K colors LED backlight:lifetime > 25000 hours
Touch screen	4-wire resistance touch screen(driver inside)

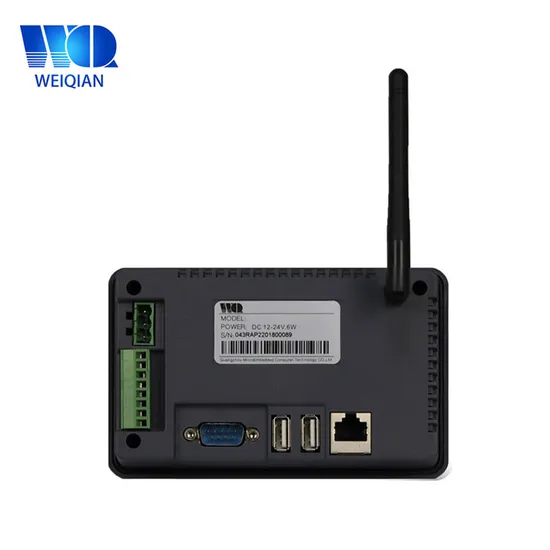

Hardware interface	1 channel RS-232-DB9 interface(COM1) 1 channel 3-wire RS-232 serial port(COM3) 2 channel RS-485 interface(COM2,COM4),COM2 is a multiplexing of CAN. 1 channel CAN bus. (driver inside)(optional). 1 channel USB Device interface, support ActiveSync connect to PC to exchange data and debug application. 2 channel USB Host interface,support usual USB device such as mouse, keyboard, U disk ,etc. 1 channel 100M Ethernet interface. 1 channel SD/MMC slot, support TF card. 1 channel WIFI module .(optional) 1 channel DC12V~24V,Power Input interface .
Attention	When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.
OS	Windows CE 6.0 R3
Defend degree	IP65 (front panel)
Working Environment	power:DC 12V-24V working Temperature:-10~60ºC storage temperature:-20~80ºC working humidity:10~90%RH
Size	shell structure: plastic panel size:139.6×86.6 (mm) trepanning size:131.2×79.2 (mm)
Application area	industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application. Support CAN bus network deployment.
Software support	Flash power-down protection function. IDE Visual Studio 2005/2008 ( net 2.0 Compact), EVC++,Labview development. Easy change the user-defined splash screen. Support display screen rotation (degree: 0/90/180/270)

2. Interface definition

1 COM2-485A (CANH)	2 COM2-485B (CANL)
3 GND	4 COM3-TX of RS-232
5 COM3-RX of RS-232	6 GND
7 COM4-485A	8 COM4-485B

2.1 RS-232 interface
2 channels,support the highest-level baudrate 115200bps. The corresponding port in Win CE system is COM1 , COM3.
2.2 RS-485 interface
The corresponding port in Win CE system is COM1,COM2. And COM2 is a multiplexing of CAN interface.
2.3 CAN Bus interface
The function of Can-bus interface is optional . Also, without terminal resistance inside ,pls specify once in need.
2.4 Power interface

3. Exterior size
Exterior size:139.6×86.6×29.3(mm) Trepanning size:131.2×79.2(mm)

Transport and Packing process
Express (UPS,DHL,Fedex,EMS,etc) is available.
Sea and Air delivery is available.
Delivery Time
Samples: 1-5 working days
100PCS or More orders: 10-20 working days
Our service:
1. We guarantee that all products have been checked and packaged in good condition before dispatch. We strive for 100% customer satisfaction on every sale we complete.
2. Our products are direct from own factory, there is no middle man, no high markup, so we can provide quality items for a very competitive price.
3. Whether you are not satisfied with our products and services or you have any other questions, Please contact us at first time. We will respond you at 24 hours.
Warranty conditions
1.All products have 1 year warranty, no artificially damaged.
2.If there are some problems with the goods, the buyer needs to supply related documents (Photos, video etc) or damage to the original spare parts to old change new. Please contact the seller before you disassemble machines. please note, we will be not responsible for the goods you disassemble any goods without the seller's permit.
FAQ
Q: whether your industrial panel pc support the OEM / ODM?
A: Yes, our industrial panel PC support the customization with size, function, appearance, resolution, high brightness and etc.

Q: Where is your panel pc / Tablet pc apply?
A: Restaruant, Advertisement, Gaming, Medical Equipment, kiosk, ATM, Industrial autamation, Supermarket chain stores, industrial control,detection device,instruments and meters,security monitoring, intelligent terminals embedded high-end application,etc .

Q: What is the main size for your panel pc and industrial monitor?
A: 7",8", 10.1", 10.4",11.6", 12", 13.3" 15", 15.6", 17" 19" 21.5" 22" and wide screen the same zise. We also support the customized.

Q: Can we printing our logo on the housing? What is MOQ?
A: Except the opening logo, we can do the silk-printing LOGO in the case. MOQ is 200pcs .
Q: What kind of inspection you can provide?
A: Weiqian has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment.
Q: What is your guarantee period?
A: 1 Years Quality Quarantee !
