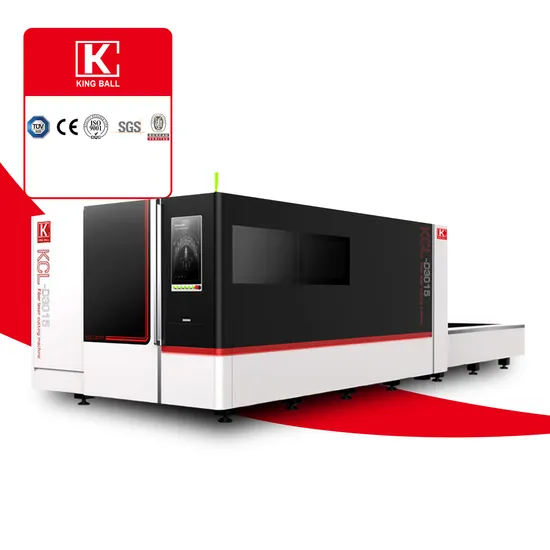

China Industrial Laser Cutter 1kw 2kw 3kw 6kw 20kw Laser Cutting Machine for Sheet Plate

China Industrial Laser Cutter 1kw 2kw 3kw 6kw 20kw Laser Cutting Machine for Sheet Plate

US$7,500.00-16,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
customized
Application
Food Machinery, Automotive Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Desktop
Laser Classification
Solid Laser
Laser Technology
Laser Fusion Cutting
Color
Customizable
Cutting Materials
Stainless Steel Carbon Steel etc( Metal Laser Cutt
Laser Source
Raycus Ipg
Item
CCD Camera CO2 Laser Cutting Machine
Function
Equipment Can Cut Aluminum and Copper Error in Cut
Working Table
Blade Table
Software Supported
Autocad
Working Voltage
Customizable
Optional
Rotary
Transport Package
Packaged by Plywood
Specification
KCL-D
Trademark
KINGBALL
Origin
China
HS Code
8456110090
Production Capacity
100 P/M

Packaging & Delivery

Package Size
480.00cm * 220.00cm * 240.00cm
Package Gross Weight
4500.000kg

Product Description

Products Description
Performance
Professional mechanical design, novel appearance modeling and a number of patented technologies, with high degree of refinement, fast speed, small cutting seam, smooth section, simple operation and low energy consumption, are suitable for mass continuous processing and highlight the cutting competitive advantage.Details Images
Model KCL-3015 KCL-4015 KCL-4020 KCL-6020 KCL-6025 KCL-8025 KCL-10025 KCL-12025
Cutting Range (mm) 3000*1500 4000*1500 4000*2000 6000*2000 6000*2500 8000*2500 10000*2500 12000*2500
Laser Power (w) 1000W&1500W&2000W&3000W&6000W&8000W&12000W
Maximum idle speed 160 m/min
Maximum cutting speed 35-80 m/min
Positioning Accuracy 0.03 mm
Reposition Accuracy 0.02 mm

Core Thechnology
MAX & Raycus & IPG Brand Laser Source
Higher Electro-optic conversion efficiency Superior reliability & modularity Easy maintenance and low down time Anti high reflection function
Laser Cutting head
3 pieces of protection lens, highly effective protection of collimating focus lens. 2-way optical water cooling, effectively
extending the continuous working time.
Various brands of laser head are available
CYPCUT
Easy to use
Vanous file editing functions
Supporl remole oontrol
Real-time alarm and protection
Steel Plate Welding
steel frames undergo annealing at over 600 degree to relieve stress. They are built to last years of heavy use without distortion. Auto
changing pallet system allows over 1800kg loading weight.A heavier frame means less vibration and better accuracy. the machine
frames are reinforced to minimize twists and deformation while the robust frame of the machine is joined to the chassis by steel
bars.
Aluminum beam
The beam body adopts the overall aluminum casting method, annealing eliminates internal stress and processes, The process is
casting →annealing stress → rough machining → vibration aging → semifinishing → vibration aging →finish machining, the machine is machined after tempering, the strength, rigidity and stability of the beam are guaranteed, the precision of the beam can be
maintained for a long time. Mainly for the high speed cutting of high power laser cutting machine provides an effective guarantee.
France MOTOREDUCER Servo Motor-Japan FUJI
Hanli brand Industrial chiller Electric cabinet(Separate electric cabinet with air conditioning)
Air Compressor(Optional) Volatge Regulator(Optional) Dust Extraction System(Optional) Cutting Thickness of Fiber Laser Cutting Machine
Cutting Samples
Company & Factory Introduction
Our Service Pre-sales services:
1. inquiry and consulting support 2. sample testing support
3. visit our factory
After-sales services:
1. 2 years warranty period 2. training how to install and use the brake press machine
3. engineers available to service machinery overseas

Contact Ways
Mr.Pumbaa Yang
Customer Manager
E-mail:pumbaa@jinqiu.cc

FAQ
1.Can you supply the relevant documentation? Yes, we can provide most documentation including Certificates of Analysis/Conformance; Insurance; Origin, and other export documents where required.
2.What is the average lead time?
For samples, the lead time is about 7 days.
For mass production, the lead time is 20-30 days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products.
If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to
accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.Or irrevocable LC at sight.
4.What is the product warranty?
We warranty our materials and workmanship.
Our commitment is to your satisfaction with our products. In warranty or not, it is the
culture of our company to address and resolve all customer issues to everyone's satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging.
We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items.
Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way.
By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of
amount, weight and way. Please contact us for further information.
