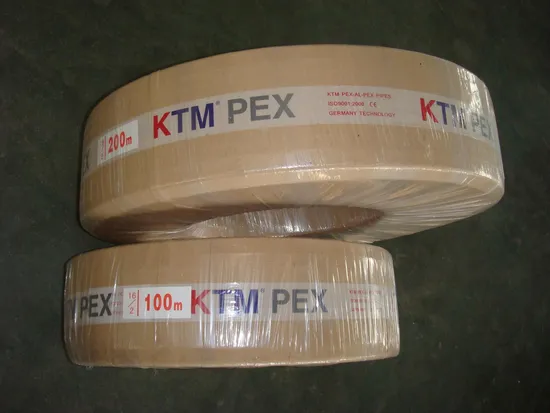

Ktm Pex-Al-Pex Pipe for Water and Gas Supply

Product Description

Aluminum-plastic pipes become more and more popular for building.
Features:
1) Specifications: Φ 16 - 32
2) Non-toxic, anti-corrosive
3) Light weight, strong mechanical properties and thermal-resistant ability
4) Low fragile humidity and long using life
5) Low flowing resistance inside the pipe, scaling can rarely happen
6) The fluids cannot be contaminated. Effective diameters are big
7) Oxygen is 100% isolated and infiltration is thoroughly prevented. In case they are used as shielding materials for telecommunication circuit, magnetic interference can be prevented
8) Anti-static, and suitable for gas and fuel transportation
9) Can be bended or straightened without restriction
Product Description German Quality Pex-Al-Pex Multilayer/Composite Pipe for Water and Heating
Overlap-welded or butt-welded;
With CE,ISO AS4176 ,SKZ ,Certification;
Coil length:50m,100m or 200m; 300m,400m ,500m
Color:White,red,blue,black,yellow or as customerized;
Packing:By kraft paper;PP white film,Carton or pallet;
Standard:DIN EN ISO 21003-2 Certified;
MWorking pressure 10bars. Max working temperature up to 95ºC; Used for : Water and gas systerms Size : from 16-63mm Supply both for pipes and fittings Service life: 50years
SPECIFICATION AND COIL INFORMATION

Norminal(mm)		14	16	18	20	25	26	32
Outer(mm)		14.0	16.0	18.0	20.0	25.0	26.0	32.0
Inner(mm)		10.0	12.0	14.0	16.0	20.0	20.0	26.0
Thickness(mm)	Wall	2.0	2.0	2.0	2.0	2.5	3.0	3.0
	Alu	0.19	0.21	0.23	0.25	0.25	0.25	0.3
Unit Weight(g/m)		100	105	120	140	210	230	310
Standard Length(m/coil)		100/200	100/200	100/200	100/200	50	50	50
CBM/Coil		0.04/0.06	0.044/0.083	0.064/0.104	0.109/0.064	0.101	0.11	0.125
Color		White/Red/Yellow/Blue/Black/or as customerized
Remarks:Aluminum thickness can be made as your requested
