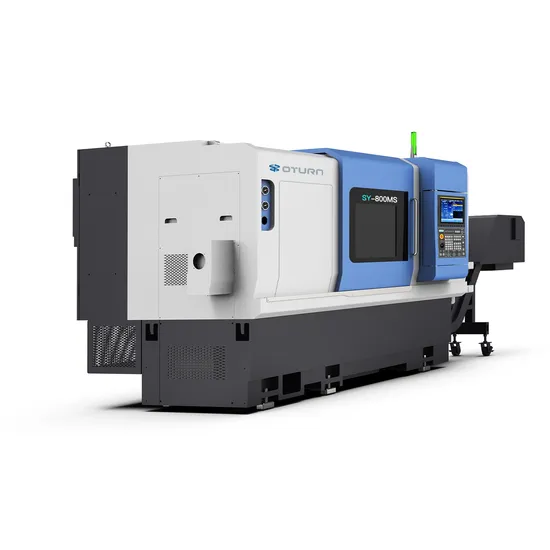

Advanced Dual Double Spindle CNC Lathe Machine with Mitsubishi/Siemens/Fanuc

Product Description

Product Description
High-strength HT300 one-piece structure casting iron bed, 30-degree step type flat rail structure, application of finite element analysis, excellent overall mechanical rigidity and stability, and can maintain long-term reliable accuracy, processing stability and tool life, stress relief treatment improve accuracy and stability, high-strength roller rail design, drive system adopts screw pre-tension design, improve response rigidity.
Both ends of the workpiece can be processed at the same time in one clamping, which greatly simplifies the manual operation, increases the output and reduces the process. The second spindle is capable of full turning and can express workpieces during machining, reducing cycle times.
1.Direct drive synchronous electric spindle device: magnetic ring type incremental encoder (Sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds.
Effectively eliminate the vibration of spindle, and the deflection accuracy of the nose end is within 0.002mm. Improve the surface finish of the workpiece.
The rear-mounted rotor is used to facilitate installation and maintenance.
The spindle motor is equipped with cooling system to suppress the influence of thermal displacement and ensure a constant working temperature of the spindle. The spindle system has passed the strict dynamic balance test. It has good precision retention, high rigidity and high efficiency, so that the machine can not only complete finishing machining, but also rough machining and heavy cutting for users. It is especially suitable for mass production of complex shapes and high finishproduct.
2.High rigidity integral servo power turret. With rapid and precise tool change performance. The tool holder installation used high-rigidity BMT interface, and the power transmission shaft is driven by servo spindle motor.
3.The machine is equipped with THK linear guide rail and ball screw. The heat-treated and precision-ground ball screw can ensure the best precision and durability. Each axis adopts a direct transfer shaft structure and a double-anchor pre-relay method, which can minimize thermal displacement and greatly improve machining accuracy. High rigidity, large size, and heavy-duty linear slide rails can keep the accuracy of the machine unaffected when it is impacted, the displacement is smooth and the noise is low, which can prolong the service life.
4.Standard configuration FANUC system, and the feed drive adopts FANUC servo motor.
5.Perfect hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components, greatly reducing the failure rate. The design of the hydraulic and lubrication system is simple and reliable.
6.Using Taiwan rotary chuck, oil cylinder and automatic chip removal device, which can greatly reduce the labor intensity of the operator and realize safe and efficient production. The above functional components can be controlled by programming. Special fixture.
Product Parameters

Name	Unit	SY800MS
The largest diameter rotating bed	mm	Φ700
Max. processing diameter	mm	Φ540
Max.Swing Over Cross Slide	mm	Ф350
Max. processing length	mm	650
Spindle nose	/	A2-6
Max. speed of spindle	rpm	4300
Hydraulic Cylinder/Chuck	/	8"
Spindle hole diame	mm	Ф66
Bar diameter	mm	Ф52
Spindle motor power	kw	18/22
Spindle motor power	Nm	103-227
Spindle nose	/	A2-6
Max. speed of spindle	rpm	4300
Hydraulic Cylinder/Chuck	/	8"
Spindle hole diame	mm	Ф66
Bar diameter	mm	Ф52
Spindle motor power	kw	18/ 22
Spindle motor power	Nm	103-227
X/Z/S motor power	kw	2.9/2.9/2.9
X/Z travel	mm	320/740
S travel	mm	650
X/Z/S axis moving fast	mm/min	24/24/24
positioning accuracy	mm	±0.005
repeat positioning accuracy	mm	±0.003
X/Z/S slide rail type	mm	45/45/35roller
Power knife tower type	pcs	BMT55-12T
Power cutter tower motor	Kw/Nm	5.0/47.7
Max. speed of	rpm	5000
The tool biock specifications	mm	25x25
Circular cutter holder specification	mm	Ф40
The adjacent tool change time	sec	0.2
Positioning accuracy	/	±2"
Repeat positioning accuracy	/	±1"
Machine size	mm	3500*2110*2100
Machine Weight	kg	7000
Cutting fluid tank volume	L	150
Cooling water pump power	W	750
Volume of hydraulic unit box	L	40
Hydraulic oil pump motor power	kw	1.5
Volume of lubricating oil tank	L	2
Auto lube pump motor power	W	50
