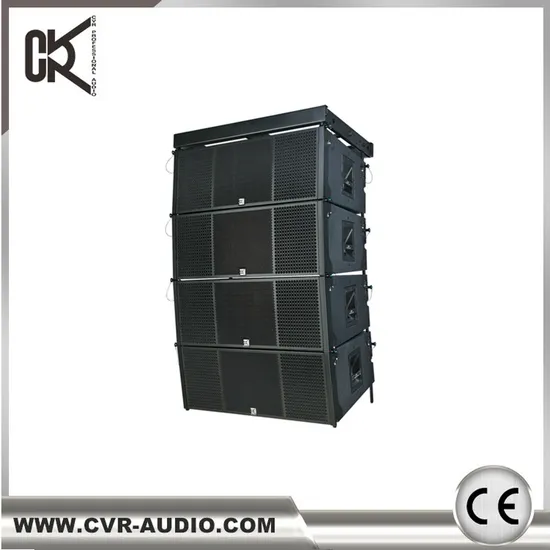

Dual 12 Inch Professional Neodymium Line Array

Product Description

Product Description
The W-9B line array which is made of two 12 inch neodymium woofers, two high sensitivity 8'' midrange speaker units, two 3'' titanium neodymium compression drivers, the drivers by two independent plane wave converter, with a innovative directly horn which generate parallel wave in the front. It's neodymium line array
W-9B professional line array is trapezoid shaped, hi, mid, low driver units all with independent horn output, which improved the speaker sound, maximum lowed the intervention between the drivers. The precise positioning position between the driver units which verified the speaker box very small, but also to ensure the gap between the cabinet to cabinet minimize. Even several boxes combination can also with a precise point forming a line array group, resulting in excellent sound quality, each box is installed with hanging assembly, can be convenient for hanging, assembling, which application W-9 line array performance excellent to large stadiums, big outdoor concerts, commercial events, etc.

TECHNICAL SPECIFICATIONS Model W-9B
Type Line array system
Frequency Response 52Hz-20KHz±3dB
Power handling LF 2×600W(RMS)2×1200W(PEAK)
MF 500W(RMS)1000W(PEAK)
HF 200W(RMS)400W(PEAK)
Sensitivity LF 104dB(1W@1M)
MF 108dB(1W@1M)
HF 111dB(1W@1M)
Max S. P. L LF 135dB(PEAK/1M)
MF 135dB(PEAK/1M)
HF 134dB(PEAK/1M)
LF section 2×12" (310mm)neodymium woofer
75mm(3in) coil
Nominal impedance 8 ohm
MF section 2×8" (210mm)neodymium MF
65mm(2.5in)coil
Nominal impedance 8 ohm
HF section 2×3"neodymium compression driver
with 75mm titanium diaphragm
Nominal impedance 16 ohm
Output section 3-channel
Dispersion pattern 110°H×7.5°V
Finish Water-proof, wear-resistant textured black paint
Array design Arrays of less than 3×W-9 will
provide poor dispersion control and
are neither recommended nor supported
Speaker cables LF 1(+)1(-) 2(+)2(-) MF 3(+)3(-) HF 4(+)4(-)
Rigging system Please refer to the W-9 user
manual before any operation
Input connectors 2×Neutrik NL8
Recommend crossover LF 60Hz-250Hz
MF 250Hz-1.8kHz
HF 1.8kHz-20KHz
Dimensions 932×360×530mm(W×H×D)
Package dimensions 1000×430×600mm/0.26cbm
Enclosure Birch Plywood
Net weight 55kg
Gross weight 59kg Detailed Photos
