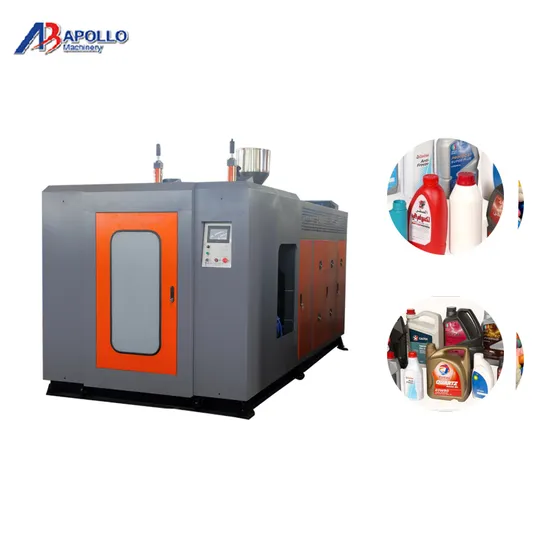

HDPE 8L Plastic Barrels Blow Molding Machinery
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
ABLB75II
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
Max. Product Volume
5L
Screw Drive Power
18.5kw
Station
Single Station
Transport Package
Film Packaging
Specification
ABLB75
Trademark
APOLLO
Origin
China
HS Code
84773000
Production Capacity
4 Set/Sets Per Month
Product Description
Auto bottle blow moulding machine
ABLB65 series full automatic bottle blow molding machine with a auto-deflashing unit. It helps you save labor cost at 200%. A wide variety of materials can be used for this machine, which specialize in making various oil barrels and related bottles not over 5 L. The clamping system is a high-precision single-station linear guide, extrusion system use a hard gear and inverter imported from Japan. The die head system adopt central-incoming extrusion die made of special steel to ensure the quality of the products. Imported hydraulic valve and seal valve with proportional control valve. Control system consist of PLC and human machine interface imported from Japan.
The main technical parameter of the machine:
Max. Product volume | 5 liters |
Dry cycle | 1000 pc/h |
Screw diameter | 65 mm |
Screw L/D ratio | 24 L/D |
Screw drive power | 18.5 KW |
Screw heating capacity | 5-6 KW |
No.of heating zone | 3 zones |
Output of HDPE | 80 KG/H |
Oil pump drive power | 7.5 KW |
Clamping force | 65 KN |
Max.size of mold | 290×320mm |
Mold stroke | 150-500mm |
Max.die diameter | 170mm |
Blowing pressure | 0.6mpa |
Air volume | 0.6 M³/MIN |
Cooling water pressure | 0.3mpa |
Water consumption | 50 L/MIN |
The component of the machine:
| Electronic Parts | |
| Name | Trader |
| Micro Computer Control System | Japanese MITSUBISHI |
| Temperature Controller | Japanese MITSUBISHI |
| Intermediate Relay | OMRON |
| Contactor | Schneider from France |
| Electric Motor | Simens Bede |
| Servosystem | Delta / MEGMEET |
| Power supply | TAIWAN MEANWELL |
| Transducer | ABB |
| Hydraulic Parts | |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | JAPAN YUKEN |
| Oil pump and connection | JAPAN YUKEN |
| Sealed part | HALLITE |
| Air Control System | HALLITE |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
