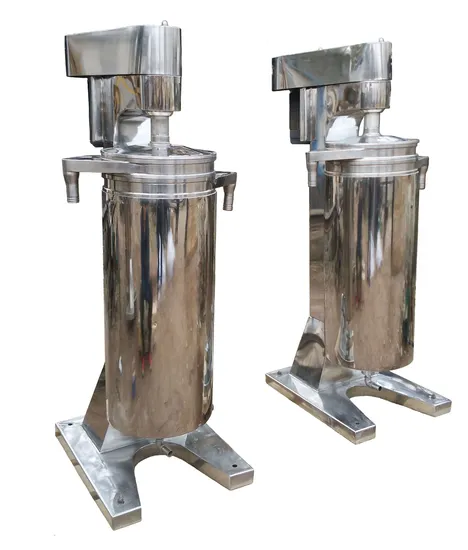

Tubular Bowl Centrifuge for Blood Separation

Product Description

Structure and principle

This separator is consisted of main body, driving device, bowl collecting pan and liquid-in bearing. The upper of the bowl is fiexible mainshaft and thelower of it is damp floating bearing. The mainshaft is connected through and with a buffer of connecting seat and a vdriven wheel. The driven wheel is driven by a motor through driving wheel and tension gear to make the bowl rotate around its own ax is at a extra speed and form a strong centrifuge force field. The stock flows into the liquid inlet from the bottom and is forced by centrifuge force to flow upto and along theinner wall of the bowl and then is separated the different layer according to density difference of the different liquid components. GQtype: Fine solid phase particles with great density are settled on the inner wall of the bowl gradually to form residne layer then to be discharged manually, after the machine stops. The liquid phase flows out of the liquid outlet at the bowl's upper after clarification.
GFtype: Liquid phase with great density forms an outer loop and liquid phase with light density forms an inner loop, and flows to the upper of the bowl out of their respective liquid outlet. The little solid is settled on the inner wall of the bowl and then is discharged manually after the machine stops.
GQtype: Fine solid phase particles with great density are settled on the inner wall of the bowl gradually to form residne layer then to be discharged manually, after the machine stops. The liquid
Technical parameters:

Type	GQ/GF75	GQ/GF105	GQ/GF125	GQ/GF150
Diameter (mm)	75	105	125	142
Bowl Speed (r/min)	19000	16300	15000	13400
Bowl Volume (L)	2.2	6	8	10
Separating Factors (ω2.r/g)	15700	15620	15750	15700
Though output Capacity (L/h)	600	1200	1500	2500
Motor Power (kw)	1.5	2.2	3.0	3.0
Weight (kg)	300	570	610	665
Dimension(mm) L×W×H	760×450×1120	840×500×1600	900×550×1600	1020×600×1600

Customer usage display:
Our Service & FAQ
One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished;
Consultant services for whole machine life, and 24 hours technical support by email;
UPS, English software, user manual and the installation & debugging by our experienced technicians.
1. Can your machine meet our need well?
We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer's need well.
2. Are you a factory or a trading company?
We are the manufacturer, and have been in industry for more than ten years.
3. What's your payment way?
T/T by our bank account directly, or by ******'s trade assurance service, or by the West Union, or in cash.
4. How can you ensure the machine's quality after we put the order?
Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
5. We are afraid you won't deliver us the machine after we pay you the money.
Please note our above business license and certificates. And if you don't trust us, you can use ******'s trade assurance service or by LC.
6. Why choose your company?
We have been engaged in the manufacturing of various packing machines professionally over 10 years, and we can provide better after-sales service.
