US$162.50-229.90
|
1 Piece
(MOQ)
|
Basic Info.
Classification
Lighting/Power
Standby Time
Long-Acting Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Large Type
Equipment Mode
Decentralized
Protection
Over Load, Over Temperature, Over Charging
Frequency Range
50Hz/ 60Hz±0.05Hz
Transport Package
Export Standard Wooden Packing
Specification
240*500*616
Trademark
Xin Poming/Po Ming
Origin
Shenzhen, Guangdong, China
Production Capacity
5000 Piece Per Month
Product Description
Product Descriptions

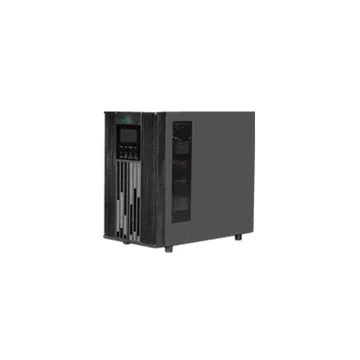

Professional design is specifically customized for small and medium enterprises servers,rack mount,tower mount,etc.A variety of installation,online doble conversion design,DSP digital technology,pure sine wave,excellent performance,high-grade appearance,which present the integration of advanced technology and traditional products.
Product Features
Load power factor is 0.8,adaptive for the development trend of electrical.
Equipment and the load capacity is more strong.
Active input power factor correction (PFC),input power factor is over 0.98.
It can be connected with generators.
Zero transfer time effective ensures the safety and reliability of load operation.
Technical Parameters
| Nominal output capacity | 1KVA/800W | 2KVA/1600W | 3KVA/2400W | 6KVA/4800W | 10KVA/8KW |
| AC input | Input voltage range | 115~300VAC±5 | 120~275VAC±5 |
| Input frequency | 45~55Hz ±0.5Hz |
| Bypass voltage | 80VAC*(1±5%)~285VAC*1±5%) |
| Battery input | Battery unit voltage | 24V/36V | 48V/72V | 72V/96V | Standard 192VDC(240VDC optional) |
| AC output | Output voltage | 220VAC±1%(Inverter output) |
| Output frequency | 50Hz ±5Hz (AC input normal) 50Hz ±5Hz (AC input abnormal) | 46Hz~54Hz (AC input normal) 50Hz ±1% (AC input abnormal) |
| Wave form | Sine wave THD<3% (Linear load);Sine wave THD<8% (Non-Linear load) |
| Output power factor | 0.8 |
| Overload capability | 130% continuous load;Not less than 30S,Recovery point:90% load | 105~125%,Transfer to bypass after 1min |
| Communication&Monitoring function | Rs232(optional 485),Dry contact,Intelligent slot(expandable SNMP,SMS,And other monitoring mode) |
