High Precision Single Output DC-DC Inverter Converter Power Module

Product Description

Brief introductionSingle output power module, built-in high precision adjustable circuit
Wide range of input voltage
Output power: 6W/3W
Circuit Diagram
Operation EnvironmentWorking Temperature: -25°C to +85°C
Storage Temperature: -55°C to +125°C
Relative Humidity: 10%-90%
P.C.B Pad Dimension

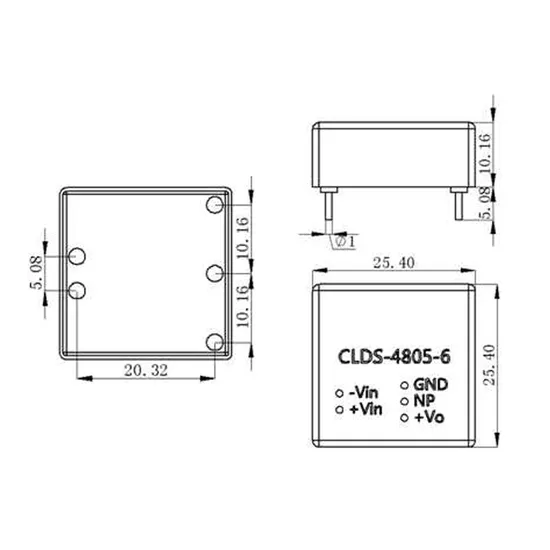

Outline Dimensions

Test item	Condition/Requirement
Input Voltage	5,12,24,48(±5%)
Setpoint Accuracy	± 3%
Line Regulation	± 0.5%
Load Regulation	± 0.5%
Dynamic Response	3%(50~75%LOAD)
Ripple and Noise	<1%Vp-p
Isolation Voltage	1000Vdc/1min/1mA
Switching Frequency	150 kHz(3W) 300 kHz(6W)
MTBF	2X10 6 h

Model 12W	Input Voltage(V)	Output Voltage(V)	Output Current(A)	Effiiency Typical Value
DS1205-3	12	5	0.5	60%
DS2405-3	24	5	0.5	60%
DS2412-3	24	12	0.2	60%
DS2415-3	24	15	0.2	60%
DS4805-3	48	5	0.5	60%
DS4812-3	48	12	0.2	60%
DS4815-3	48	15	0.2	60%
DS4824-3	48	24	0.1	60%

Model 16W	Input Voltage(V)	Output Voltage(V)	Output Current(A)	Effiiency Typical Value
DS1205-6	12	5	1.2	80%
DS2405-6	24	5	1.2	80%
DS2412-6	24	12	0.5	80%
DS2415-6	24	15	0.4	80%
DS4805-6	48	5	1.2	80%
DS4812-6	48	12	0.5	80%
DS4815-6	48	15	0.4	80%
DS4824-6	48	24	0.2	80%
