JINNFA YJM-855 china High Quality Precision Vertical Machining Centre CNC Milling Machine 3-5axis

Product Description

YJM-850/855V/856 VERTICAL MACHINING CENTER
High rigidity spindle, working table with quench hardening and grinding.
Long-span structure of Z axis block (6 pcs ) and long-span guideway base design.

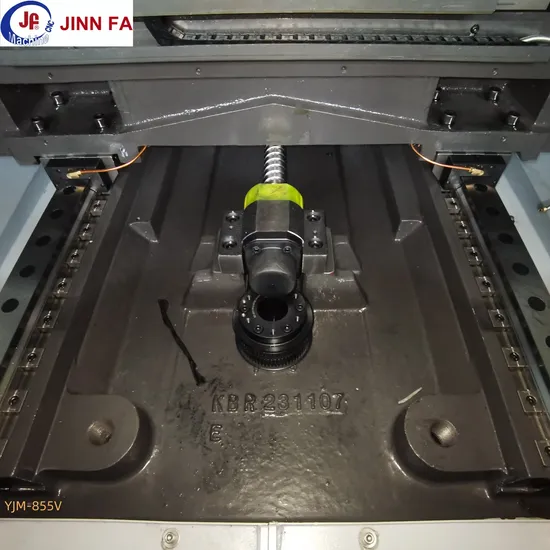

Grinding standard importing ballscrew is installed, good rigidity, wear-resistant and longer life.
Dynamic balance from working table supported by 6 pcs block of X axis, fast moving by direct driving of 3 axes.
Linear roller guideway with good rigidity and fast feeding to shorter machining time.
Spindle cooling system helps control spindle thermal and working precision.
Note: Our company reserves the right to change the specification without advance notice.

Product Parameters

ITEM	UNIT	YJM-850	YJM-855V	YJM-856
TABLE( L x W)	mm	1000x500	1000x550	1000x500
T-SLOT	mm	5-18x90	5-18x90	5-18x90
X/Y/Z TRAVEL	mm	800x500x500	800x550x550	800x500x500
SPINDLE SPEED	rpm	belt 8000/10000/ direct12000	belt 8000/10000/ direct12000	belt 8000/10000/ direct12000
SPINDLE TAPER	/	BT40	BT40	BT40
GUIDEWAY( Rolle)	/	35/35/35	35/45/45	35/35/35
TOOL STORAGE CAPACITY		24	24	24
TYPE OF TOOL	/	Disk type	Disk type	Disk type
SPINDLE NOSE TO TABLE SURFACE	mm	150-650	120-670	150-650
SPINDLE CENTER TO SOLID COLUMN SURFACE	mm	570	550	570
3-AXIS SPEED	m/min	48/48/48	36/36/36	48/48/48
POSITIONING	mm	±0.005/300	±0.005/300	±0.005/300
REPEATABILITY	mm	±0.003/300	±0.003/300	±0.003/300
MIN. SETTING UNIT	mm	0.001	0.001	0.001
MAX LOADING	Kg	500	600	500
CONTROLLER	/	Optional SYNTEC / MITSUBISHI / FANUC	Optional SYNTEC / MITSUBISHI / FANUC	Optional SYNTEC / MITSUBISHI / FANUC
SPINDLE MOTOR	kw	7.5/11	7.5/11/15	7.5/11
TOOL SELECTION METHOD	/	Pneumatic	Pneumatic	Pneumatic
AIR REQUIRED	Kg/cm2	≥ 6	≥ 6	≥ 6
POWER REQUIRED	kVA	20	20	20
MACHINE WEIGHT	Kg	5000	5500	5000
MACHINE DIMENSIONS( L x W x H )	mm	2500x2400x2600	2600x2500x2700	2500x2400x2600
Note: Our company reserves the right to change the specification without advance notice.

Our Advantages
JINN FA Gang Tool CNC Lathe's Advantage:
1: Simplicity and Affordability
Gang tool lathes are often more cost-effective than turret lathes due to the simplicity of their tool change process. The lathe's standard axis servos and leadscrews handle all the work, whereas motorizing a turret can increase costs significantly.
2: Precision
Gang tool CNC lathes have an accuracy advantage over turret lathes due to their simpler moving parts, which reduces tolerance stack up and other types of slop. Additionally, the gang lathe is better suited for moving parts across shorter distances.
3: Rapidity
The tool change process in gang lathes is incredibly speedy as it utilizes slide motion for tool changes, eliminating the need for turret indexing.
4: Quick Installation
Gang tooling lathes offer fast setup times, with a simple set of tools and the ability to switch out a single block for a specific size twist drill allowing for a wide range of gang work to be accomplished.
5: Durability
Gang Tool lathes are known for their robustness, which is directly linked to their simplicity. With fewer moving parts, gang lathes are less prone to errors and malfunctions.
Company Profile
POLOMAC TECHNOLOGY(QING DAO)L.L.C
PROFESSIONAL CNC MACHINING MANUFACTURER & SUPPLIER


We have done a great deal to ensure the quality of our machines meets international standards. To this end, we have rigorous inspection procedures, which are conducted throughout all phases of the manufacturing process. This allows us to ensure the ultimate in quality. This commitment to quality and expert workmanship enables JINN FA to offer machines that fully meet customers' strict requirements of machine performance.
High Accuracy High Quality High Efficiency
JINN FA Machine industrial Co., Ltd. was established in 1976 as a Precision Metal Lathes Machine Tool Manufacturer. JINN FA designs and manufactures a wide range of auto lathes, cnn lathe machines, CNC machining centers and special purpose machines. Based on the company philosophy of technological innovation and leadership, JINN FA has spent great efforts in the research and development of advanced machine tools. Our precision cnc metal lathe machines have been widely sold to many countries in the world. Each metalworking lathe and machine is manufactured to the highest quality standards, with the highest versatility, providing the most competitive edge for parts machining. JINN FA machines are further enhanced by fine craftsmanship, which guarantees the user outstanding precision performance. Today JINNFA continues to labor at the technological forefront of the machine tool industry, maintaining a reputation for innovation design, state-of-the-art manufacturing techniques and rigorous quality control.
JINNFA continues to expand its service market, adhering to the company's belief of continuous technological innovation and technological leadership. In 2001, China POLOMAC TECHNOLOGY Co., Ltd. was established to enable every Jinnfa machine to serve the world.
A highly reputed manufacturer of CNC precision metal lathes, CNC machining centers and special purpose machines.
Certifications
Packaging & Shipping
FAQ
1.What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A:FANUC, SIEMENS, MISTSUBISHI, GSK, SYNTEC. lt depends on your choice.
3:How can l choose the most suitable machines?
A: Please tell me your specifications, we can choose the best model for you, or you can choose the exact model. You can also send us the products drawing, we will choose the most suitable machines for you.
4: What's your main products of your company?
A: We are a machine tool manufacturer that produces CNC lathes, CNC milling machines, vertical machining centers, Swiss style automatic lathes, grinders, and machine tool specific tools and precision parts OEM.
5: Can you come to our company for technical support?
A : Yes, we can provide on-site technical support, but travel and service fees will need to be paid.
6. What is your trade terms?
A:FOB, CFR and CIF all acceptable.
7: What's the Payment Terms?
A:T/T, 30% initial payment when order, 70% balance payment before shipment; lrrevocable LC at sight.
