China Small Heavy Duty Vertical CNC Machine Milling for Metal Cutting (XK7124)

Product Description

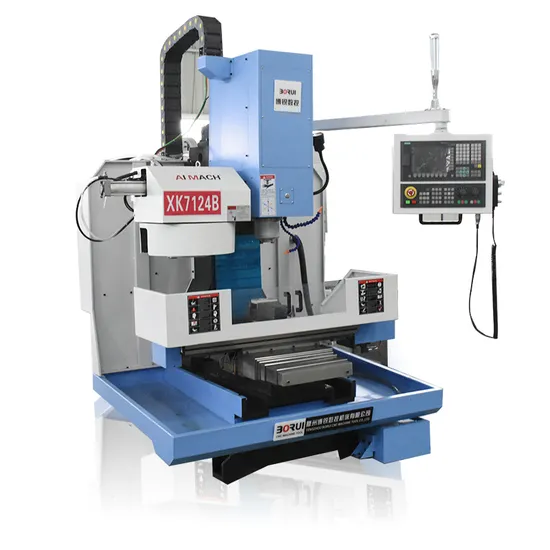

XK7124B CNC Vertical Milling Machine
Product Description
Product Description The main performance characteristics:
1.The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.
2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce the vibration of machine on heavy cutting
3.The pre tension precision ball screw drive
4.The high speed, high precision, high rigidity spindle unit
5.The design of oil-water separation
6.The intermittent automatic lubrication
7.Automatic scraping knife system
Application:
The cnc milling machine can be applied to many fields such as mechanical processing and mould manufacturing, can adapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widely used in aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.

Product Parameters

Specification		XK7124B
Worktable size length(mm)×width(mm)		1000×240
T-slot quantity-width(mm)		5-14-44
The max loading weight(kg)		200
X axis stroke(mm)		500
Y axis stroke(mm)		350
Z axis stroke(mm)		450
The distance from end face to worktable surface (mm)		80-530
Teh distance from spindle ctnter to column surface(mm)		310
Spindle tapper		BT40
Spindle speed (Rpm)		6000
Main motor power (kW)		3.7K(servo)
Feeding motor	X axis torque(N.M)	6(servo)
	Y axis torque(N.M)	6(servo)
	Z axis torque(N.M)	10(brake automatically)
Quickly moving speed(m/min.)		4000
Cutting feed speed(mm/min)		1-4000
Screw specification(diameter mm/screw pitch mm)		32/6
Accuracy	Position accuracy (mm)	0.01
	Repeat position accuracy(mm)	0.008
Machine weight kg		1500kg

The machine standard accessories :

Item	Name	Specification	quantity
Standard accessories	Collect chuck shank	BT30	1PCS
	Milling chuck		1SET(8 pcs)
	Rivet		1PCS
	Hook spanner		1pcs
	Inner hexagonal spanner		1set
