Automatic Plastic Disposable Cup Bowl Tray Container Thermoforming Forming Making Machine

Product Description

There are different kinds of thermoforming machines. We'd like to recommend suitable machine according to customer's request.

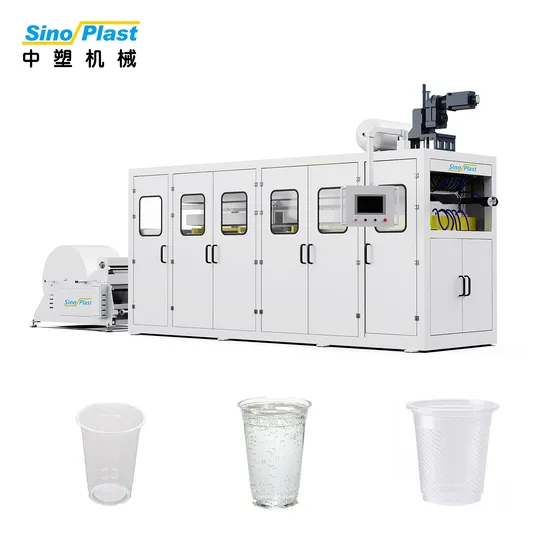

SPE-760 Series Automatic Plastic Cup Thermoforming Machine
(Mainly for making plastic cups, bowls, plates, lids without holes, etc)

I. Usage:
SPE-760 Automatic Plastic Cup Thermoforming Machine is mainly used to from PP/HIPS/PET/PLA/PVC sheet into various kinds of disposable plastic cups, such as hot/cold drinking cup, ice-cream cup, yogurt cup, milk cup, jelly cup, juice cup,etc. It could also make some regular shape products, such as plate, bowl, cover, dish, box, etc with different moulds.
II. Main Features:
1) The stretching of plugs inside of the upper mould are controlled by air cylinder or servomotor.
2) The sheet feeding is driven by pin chain. The pin chain is controlled by motor with inverter or servomotor and the feeding length can be set through touch screen.
3) It adopts four pillars to fix the mould. We could adopt four pillars to fix the mould.
4) The up mould is fixed and the mould plate movement is driven by servomotor.
5) The temperature of each zone is controlled by Temperature control module.
6) The production process include sheet feeding, heating, plugs stretching, forming and in-mould cutting and blow final products out.
7) We adopt square steel to make the machine frame stronger.
8) The machines is controlled by PLC and touch screen.
III. Main Technical Parameter:

Model	SPE-760A	SPE-760B	SPE-760C	SPE-760D
Max. Forming Area	760 x 320 mm	760 x 320 mm	760 x 420 mm	760 x 420 mm
Example	Cup Top Dia.=75mm, 24cavities/mold		Cup Top Dia.=75mm, 32cavities/mold
Running Speed	15-32 cycles/min(according to sheet thickness, material used and product shape)
Sheet Thickness Range	0.20 - 2.0 mm
Required Material	PP, GPPS, HIPS, PET, PVC, PLA, Biodegradable Sheet
Max.Forming Depth	160 mm (Can be custom made)
Lower Mold Movement	11KW Servomotor		15KW Servomotor
Max. Sheet Reel Dia.	800 mm
Heating System	Top + bottom (10x9+9x9=171pcs), 800W/pc Heating with IR Ceramic Heater		Top + bottom (12x9+11x9=171pcs), 800W/pc Heating with IR Ceramic Heater
Temperature Control Method	Temperature Controller and Temperature Control Module
Water Consumption	0.5-1.0m³/h(recycled)
Air Consumption	1.3-1.6m³/min, 0.6-0.8Mpa
Sheet Feeding Method	2.2KW Motor	4.4KW Servomotor	4KW Motor		4.4KW Servomotor
Plug Stretching Method	Air Cylinder	5.5KW Servomotor	Air Cylinder		7.5KW Servomotor
Power Voltage	3HP 380V±10V 50HZ
Approx.Dimension	5000×1400×2400mm		5000×1400×2400mm
Approx.Weight	8000KG		9000KG

Auxiliary Machines For Thermoforming Machines:
1) Stacking Machine:
2) Cup Counting & Packing Machine:
3) Automatic Cup Curling Machine:
4) Preheating Machine:
Please contact with me to get quotation with detailed specification!
