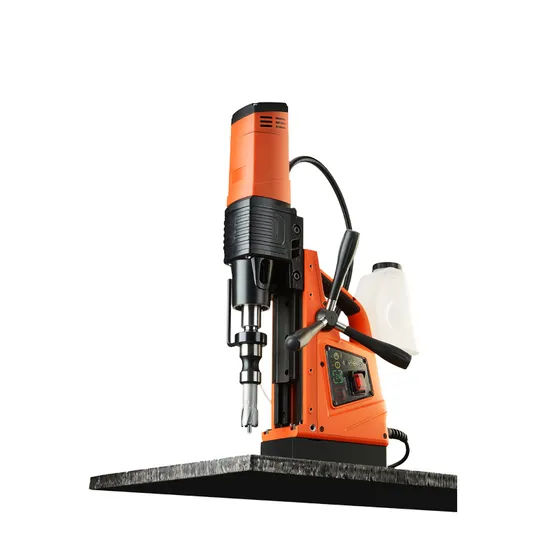

Chtools High Power 1500W Dx-60 Magnetic Base Drill Machine
| US$420.00-450.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DX-60
Structure
Deep Hole Drilling
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
Other
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
Other
Condition
New
Stroke
170mm
Input Power
1500W
The Max Cutting Depth
75mm
The Max Cutter Capacity
60mm
The Max Diameter of Twist Drill
31.5mm
The Min Cutter Depth
10mm
Load Speed
250/450rpm
Transport Package
The Cartons
Specification
DX-60
Trademark
CHTOOLS
Origin
China(Mainland)Zhejiang
HS Code
8459290000
Production Capacity
1000
Product Description
| Product Type | DX-60 |
| Stroke(mm) | 170mm |
| Magnetic base size(mm) | 210*100*45mm |
| Input power (W) | 1500W |
| The max cutting depth(mm) | 75mm |
| The max cutter capacity diameter(mm) | 60mm |
| Motor can adjust the height to(mm) | 130mm |
| The max diameter of twist drill(mm) | 31.5mm |
| The min cutter depth(mm) | 10mm |
| Magnetic adhesion(N) | 15000N |
| The type of shank | MT3 |
| Total weight(KG) | 25.4KG |
| Load speed (rpm) | 250/450rpm |
Zhejiang Xinxing Tools Co., Ltd. established in 1992, is a manufacturer concentrating on R&D and manufacture of cutting tools with high-performance. Drafting unit for Chinese industrial standard of annular cutter.
Our products include high efficiency energy saving annular cutter series that won the single industry
champion, and rail cutter, hole saw, and self-developed magnetic drilling machine series.
In addition, a series of high-precision tools, spade drill, BTA deep hole drill, S drills, and milling cutter have been added.
The company has modern production lines, including internationally-known numerical control machine tool, full-automatic CNC machine tool, heat treatment production line, strong production capacity, From raw material testing, blanking, rough processing, heat treatment, finishing processing to finished product inspection and testing, and all the production processes are completed by our own factory. For you, which means: The most reliable products supply and the fastest delivery time.
