Ipg Raycus Maxphotonics 1kw Handheld Laser Welding Machine

Product Description

Product Description
The hand-held laser welding machine adopt a fiber laser source and transmit high-brightness laser through the fiber, obtain a high energy density output through the hand-held welding head. It is used for welding stainless steel, low carbon steel, aluminum alloy and other materials, and the operation is flexible and convenient. The hand-held laser welding machine is integrated with fiber laser source, hand-held welding head, chiller, wire feeder, laser control system, and safety light emitting system. The overall design is small, beautiful, and easy to move. It is convenient for customers to choose a working place without being limited by space and scope. This machine can be used for welding applications in billboards, metal doors & windows, sanitary ware, cabinets, boilers, frames and other industries.

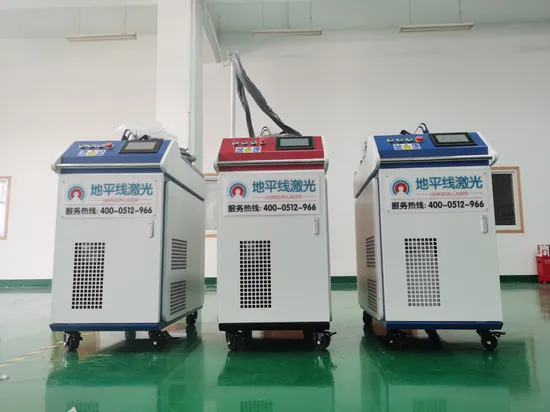

Detailed Photos
Appication

Product Parameters

Technical Parameters

Model	DPX-W1000	DPX-W1500	DPX-W2000
Laser Source Type	CW fiber laser source(Wavelength: 1080±3nm)
Output Power	1000W	1500W	2000W
Power Adjustment Range	10%~100%
Welding Mode	Continuous Welding, Spot Welding
Adjustable Weld Width	0.2~5 mm
Torch Cable Length	About 10m
Torch Weight	<1.2 kg
Dimensions(L*D*H)	1000*550*700mm		1200*600*1300mm
Net Weight	110kg		250kg
Power Consumption	<5kw	<7kw	<9.5kw
Operating Voltage	Single-phase 220VAC/ Three-phase 380VAC
Working Environment	Temperature:0~40ºC,Humidity<70%
Safety Light Emission System	1. Safely earth lock: the welding head can control the light emission only when the welding head touches the work-piece.2. Gas detection: The alarm red light will indicate when the gas cylinder is not opened or the gas flow is low. 3. Welding gun firing button and laser shutter, double insurance to emit light.

Welding speed is 4 times faster than argon arc welding;
One-time welding forming, smooth welding bead, no need for grinding;
Basically no consumables, standardized use, the protective lens can be used for several weeks;
You can get started in 4 hours and become skilled as an professional welder in one day;
Comes with air pressure detection alarm to avoid damage to the welding torch;
Welding Performance

Recommended Welding Thickness for Different Materials
Model	DPX-W1000	DPX-W1500	DPX-W2000
Stainless Steel	≤3.0mm	≤4.0mm	≤6.0mm
Mild Steel	≤3.0mm	≤4.0mm	≤6.0mm
Galvanized Sheet	≤2.0mm	≤3.0mm	≤5.0mm
Aluminum Alloy	≤2.0mm	≤3.0mm	≤4.0mm
Brass	≤2.0mm	≤3.0mm	≤4.0mm
Note: The above is the maximum processing capacity of each model.
