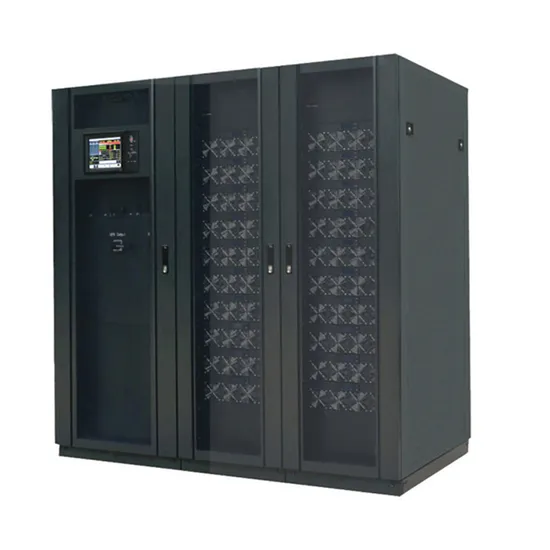

Data Center Room Three Phase High Frequency 600kVA Modular UPS
| US$1,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Modular UPS
Protection
Over Voltage, Short Circuit,etc.
Application
Communication
Classification
Lighting/Power
Standby Time
Long-acting Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Large Type
Equipment Mode
Centralized Model
Brand
OEM
Voltage
AC Input 380V 415V
Work
Power Modules in Parallel Online Hot-Swappable N
Charger
Independent Charger Intelligently Control
Design
Modular Design with Transformer
IGBT
Integrated IGBT in One Module, Less Failure Points
Transformer
in-Built Isolation Transformer
Independent Air Channel
Cooling Air Runs in Isolated Channel, Keeping PCB
Touch LCD
with Multiple Language English Russia Italian Fran
High Power Density
200kVA Footprints of About 0.5m ,Saving Valua
Transport Package
Carton&Wood Pallet
Specification
60KVA-200KVA
Trademark
OEM
Origin
China
HS Code
8504402000
Production Capacity
100PCS/Month
Packaging & Delivery
Package Size
85.00cm * 65.00cm * 130.00cm
Package Gross Weight
800.000kg
Product Description
For Data Center IT Room Three Phase High Frequency Hot-Swappable 600KVA Modular UPS
Features:
*Modular hot-swap design
*Independent charger
*Battery cold start
*Integrated IGBT
Technical specification:
| MODEL | 92M200/20X | 92M120/20X | 92M60/20X | ||
| System Capacity | 200kVA | 120kVA | 60kVA | ||
| Power Module Capacity | 20kVA/18kW | ||||
| Input | Dual Input | Optional | |||
| Phase | 3 Phase+Neutral+Ground, 380V/400V/415V(line-line) | ||||
| Input Voltage Range | 304~478Vac (line-line),full load; 228V~304Vac (line-line),load decreases linearly according to the min phase voltage | ||||
| Rate Frequency | 50/60Hz | ||||
| Bypass | Input Frequency Range | 40Hz~70Hz | |||
| Input PF | >0.99 | ||||
| Input THDi | <3% (100% Linear load) | ||||
| Rate Voltage | 380/400/415Vac (line-line) | ||||
| Rate Frequency | 50/60Hz | ||||
| Output | Input Voltage Range | Settable, -40%~+25% | |||
| Bypass Frequency Range | Settable, ±1Hz, ±3Hz, ±5Hz | ||||
| Bypass Overload | 125% long term operation; 130% for 1 hour ;150% for 6 mins; 1000% for 100ms | ||||
| Rate Voltage | 380/400/415Vac (line-line) | ||||
| Voltage Regulation | 1% for balance load; 1.5% for unbalance load | ||||
| Battery | Rate Frequency | 50/60Hz | |||
| Frequency Precision | 0.1% | ||||
| Output PF | 0.9 | ||||
| Output THDu | <1% , Linear load; <5.5%, Non-linear load | ||||
| Crest Factor | 3:1 | ||||
| Inverter Overload | 110% for 1 hour; 125% for 10 mins ;150% for 1 min; >150% for 200 ms | ||||
| Voltage | ±240Vdc | ||||
| Battery Number | 40pcs (Settable: even number from 32 to 44) | ||||
| Voltage Precision | ±1% | ||||
| Charge Power | up to 20% * Output active power | ||||
| Battery Cold Start | Standard | ||||
| Efficiency | AC Mode | 95.0% | |||
| ECO Mode | 99.0% | ||||
| Battery Mode | 95.0% | ||||
| System | Display | 5.7" touch screen LCD + LED + keyboard | |||
| IP Class | IP 20 | ||||
| Interface | RS232,RS485, Programmable Dry Contact | ||||
| Option | SNMP Card, Parallel kit, SPD, LBS, Dust filter | ||||
| Temperature | Operation: 0~ 40 ºC Storge: -40 ~70 ºC | ||||
| Relative Humidity | 0 ~95% Non-condensing | ||||
| Altitude | <1000m. Within 1000m to 2000m, power derate 1% for every 100m rise | ||||
| Noise (1 meter) | 55dB @ 50% load | ||||
| Applicable Standards | Safety: IEC/EN 62040-1 EMC: IEC/EN 62040-2 Performance: IEC/EN 62040-3 | ||||
| Physical | Weight (kg) | Cabinet | 180 | 150 | 105 |
| Power module | 22 | ||||
| Dimension W*D*H(mm) | Cabinet | 600*900*2000 | 600*900*1600 | 600*900*1100 | |
| Power module | 440*590*134 | ||||
Company Profile
Why choose us?
1. 16years manufacturing experience on power inverter and UPS
2. Monthly production is 5000pcs assure fast delivery time
3. Professional R&D person offer permanent technical supprt and 24-month worry-free after sales services.
4. 98% 5-star reviews from customers
5. CE, ETL, UL certificates on inverters and UPS, ISO9001&ISO14001 on factory
FAQ: Q1. What is your terms of payment? A: T/T 30% as deposit, and 70% before shipment. We'll show you the photos of the products and packages before you pay the balance. Q2. What is your terms of delivery? A: EXW, FOB, CFR, CIF, DDU,DDP Q3. How about your delivery time? A: Generally, it will take 5-20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Q4. Can you OEM and ODM Service? A: Yes, we can provide free OEM Service and ODM Service Q5. Do you test all your goods before delivery? A: Yes, all our products are 100% tested and more than 8~12 hours for againg, and strict test before dispatch.
