Qtj4-26D Small Hydraulic Brick Machine

Product Description

Product Description
QTJ4-26D Block Making Machine

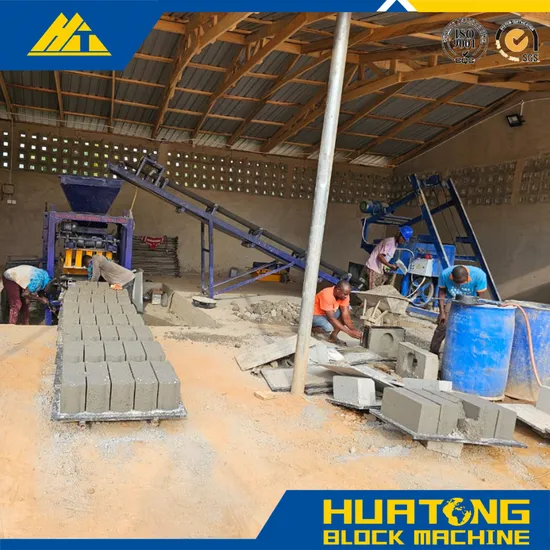

QTJ4-26D Block Making Machine is made up of HT350Mixer,6 meters belt conveyor,block moulding machine and two trolleys.It is good choice for new starter in block making machine business.This machine is simple and easy to operate and maintain.It can produce hollow block,solid block and paving block by changing mould.
Product Parameters

Production Capacity
Block Type	Picture	Size(L x W x H)	Pcs./Pallet	Pcs./Hour	Pcs./8 Hours
Hollow Block		400x200x200mm	4	400	3200
Hollow Block		400x150x200mm	5	500	4000
Hollow Block		400x100x200mm	7	700	5600
Stock Brick		220x108x70mm	20	1800	14400
Paving Block		200x100x60mm	14	1400	11200
Paving Block		225x112.5x60mm	12	1200	9600
We make mould according to size and shape of client's block.

Technical Parameter and Features of QTJ4-26D
Dimension	3600×1700×2560mm
Weight	3000KG
Pallet Size	850x480mm
Power	12.65KW
Board Vibration Motor	2.2KW x2
Up Vibration Motor	3.0KW
Elevator Motor	3.0KW
Wet Block Conveyor Motor	0.75KW
Belt Conveyor Motor	0.75KW
Pull and Push Motor	0.75kw
Vibration	4200r/min
Vibration Force	35KN
1.QTJ4-26D is simple and easy to control and maintain.It is good choice for new starter in block making business.
2.QTJ4-26DConcrete Block Machine can produce hollow block,solid block and paving block by changing mould.
3.QTJ4-26D is good in design and technology.One vibration motor is on up-mould.Down-mould uses one vibration box.The power is small but vibration effect is good.
4.QTJ4-26D uses four guide post for mould movement.The machine can vibration vertically in one direction.Concrete blocks made by QTJ4-26D is good density and strength.

Technical Parameter of HT350Mixing Machine
	Dimension of machine	1500mm*1250mm
	Mixing Motor	5.5kw
	Weight of machine	480kg
	Diameter of mixing drum	1250mm
	Height of mixing drum	500mm
	Charging Volume	0.3M3
	Discharging Volume	0.24M3
	Speed of main shaft	60 r/min

Detailed Photos


Block Samples

This is samples of blocks made by our machine.We produce mould according to block size and shape of clients. Certifications
Our company was started in the year of 2004.We have hundreds of patent for block making machine.

Company Profile
Shandong Huatong Hydraulic Pressure Machinery Co., Ltd is one of the best Concrete Block Machine and concrete mixing plant in China which founded in 2004. Now we have sold machines to more than 65 countries such as Russia, North Korea, Malaysia, Vietnam, Egypt, Panama, Zambia, Sudan, Uganda, South Africa and so on...Our company covers 45000 square meters. There are 400 skilled workers, 12 engineers, 45 technicians. And huatong has 12 workshops which are used for steel cutting, welding, machining, assebling and so on. Our company is certificated enterprise by ISO9001. All machines must be inspected by the quality control department to ensure the quality. Huatong has R & D department and production workshop, specializing in machinery research and development work. The models of our concrete block machine are QT4-15 Semi-automatic Block Making Machine, QT5-15Semi-automatic Block Making Machine, QT5-15Automatic Block Making Machine, QT8-15Automatic Block Making Machine, QT10-15Automatic Block Making Machine. Meanwhile the models of our concrete mixing plant is HZS25, HZS35, HZS50, HZS60, HZS90 and HZS100.Our company has won many honours such as The Best Ten Brands of Block Making Machinery in China, Chinese Qualified Products, Member of China Construction Association, Advanced Technology of Mould Making from Shandong Scientific Center and so on.
FAQ
me?The following questions should be carefully considered by yourself.Firstly,what Block Size do you want make?How many Blocks do you want make per day?What is your budget for this block machine project?How much land do you have?We can choose the suitable model and configuration for you if above information can be provided.3.How could we buy machine from China Huatong Block Machine? Our company will sign Sales Contract or Proforma Invoice with you by Email,Fax or Mail after confirming the Equipment that you want to buy;Our company will arrange Equipment and Mould Production after receiving your 30% deposit.The balance should be paid when the production is finished.Then we will arrange delivery to your closest Sea Port where you can take over the Equipment.4.How could we take over the Equipment? At present our customers come across more than sixty Countries around the world.They are using our machine,but most of our machine spread in Africa,Middle East,Southeast Asia, Eastern Europe and South America.We will book the Container from the Ship Company when the production is finished.Then the truck will take the Container to our factory for loading,be back to port after finish loading.The Ship Company will transport the Container to designated port where the customers can take over the machine.We also can be responsible for transporting the Equipment to Inland City,but according to our previous experiences,it will be saving transport costs if customers can cover the Inland Transport by yourself.5.Can we produce various sizes and shapes of Blocks? Our machine can produce various sizes and shapes of Blocks by changing different Mould.Some of Moulds are available in our company.The Moulds also can be customized by customer's block sizes and shapes.Or we can design the relative Mould based on your block size,picture or drawing.Normally one Mould can produce one kind of Blocks.6.What should we do if machine do not work any more? We will send technicians for guiding Installation, Commissioning,Trial Production while training the technicians of customer after the equipments arrived at the site;Normally our equipments do not have big problem.The Technicians of customer can take care of it with our help if any problem occur.We usually recommend customers to purchase part of Spare Parts as backup.Our company has more than Thirty years experiences for producing Block Making Machine with stable and reliable Equipment Quality.7.What is power of Block Making Machine?All our Block Making Machine are drove by Electric Power, presently there is no diesel-powered equipment.We do recommend that customers purchase generators as backup power if the place of customer is Electric Power Shortage.8.What is the cost of purchasing equipment by customer?Customers need to pay local port costs and import duties except for paying for our equipment and sea freight.The duty will not exceed 18% in most of countries for this equipment as far as we know.9.What is the strength of Blocks made by our company.Our Block Making Machines adopt international most advanced Moulding Way that is Hydraulic Pressure with Vibration.The Block Quality is higher than blocks made by simple vibration and gravity molded.Take Chinese Standard Solid Bricks 240x115x53mm for example, the brick strength can be reached 15Mpa, for Hollow Block 390x190x190mm can reach 7.5Mpa and pavers 200x100x60mm can reach 50Mpa .The Quality Requirements of all the countries can be reached.
