AAC Wall Panel Reinforced Mesh Welding Machine
Basic Info.
Model NO.
GWC-C-500
Voltage
380V
Warranty
1 Year
Model No
Gwc-C-500
Usage
Welding Mesh Panels
Max Mesh Width
500mm
Mesh Length
3000mm
Wire Diameter
4-8mm
Line Wire Spacing
50-400mm
Cross Wire Spacing
25-400mm
Line Wire Feeding
Coil
Cross Wire Feeding
Pre-Cut Bar
Transport Package
Safety Export Package
Trademark
YZ
Origin
China
Production Capacity
20 Sets/Month
Packaging & Delivery
Package Size
3000.00cm * 100.00cm * 250.00cm
Package Gross Weight
15000.000kg
Product Description
Product Description
Dedicated in resistance welding machine for more than 20 years,Yizhou provide you one-stope welding machine professional solution

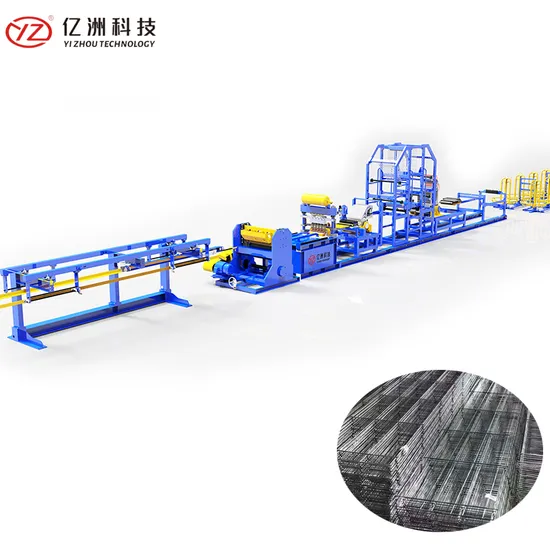

GWC-C-500 The AAC mesh welding machine is a type of industrial equipment used for welding reinforcing mesh panels made of AAC (Autoclaved Aerated Concrete). This machine is commonly used in the construction industry for producing high-quality AAC mesh panels, which are used for strengthening concrete structures.
The AAC mesh welding machine is capable of producing mesh panels of different sizes and shapes, making it a versatile and essential tool for construction projects.
We have experienced R&D department to customize the welding machine according to your requirement.
Product Parameters
| No. | Item | Specification |
| 1 | Wire Diameter | 4-8(mm) |
| 2 | Line Wire Spacing | 50-200mm |
| 3 | Cross Wire Spacing | 25-400mm(infinitely adjustable programming) |
| 4 | Max Mesh Width | 500mm |
| 5 | Max mesh length | 6000mm |
| 6 | Number of Electrodes | 8 |
| 7 | Welding Speed | 100 cross wires/min |
| 8 | Rated Voltage | Three phase,380V,50Hz(according to requirement) |
| 9 | Rated Power | 2*150KVA |
| 10 | Line Wire Feeding | Coils |
| 11 | Cross Wire Feeding | Pre-cut bars ,automatic blanking |
| 12 | Material | Low carbon round rebars or ribbed rebars |
| 13 | Mesh Pulling Way | CNC servo motor |
Detailed Photos
Contact Us
To know more information of machines,please contact us
Ms.Lancy
