Farm Tiller Machine Gasoline Power Weeder Cultivator

Product Description

Product Description
Agricultural Machinery 170 Petro Cultivators
The 170 petrol micro-tiller is widely used in various agricultural environments such as dryland, paddy field, orchard, etc., and can be adapted to different terrains such as plains, mountains and hills. Equipped with corresponding machine tools, besides rotary ploughing and ploughing, it can also carry out a number of operations such as seeding, threshing, pumping, spraying, power generation and transport.
Due to its small size, light weight, easy and flexible operation, the petrol micro-tiller is especially suitable for ploughing of narrow or irregular plots. It is also widely used in orchard management, such as soil tilling, weeding and other operations, which not only improves the production efficiency, but also reduces the labour intensity.
With compact design, abundant power and reasonable gear settings, the 170 petrol micro-tiller is able to work stably under different soil conditions and meet the needs of all kinds of agricultural production activities, making it an ideal equipment indispensable for modern agriculture.

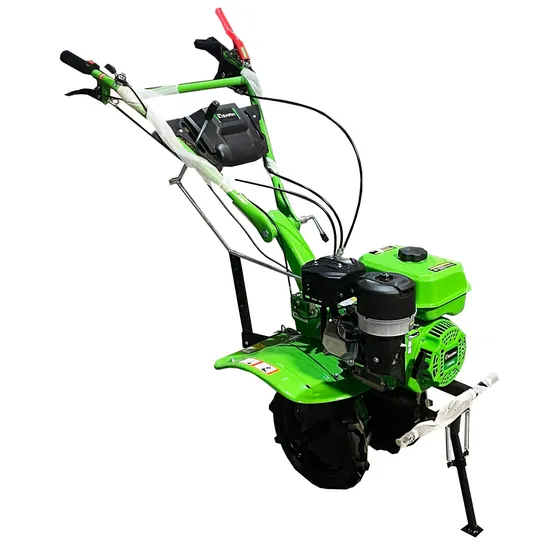

Product name			170 Gasoline Tiller Machine
Model Name			1WG4.0-100FQ-ZC
Specification Model			Handheld
Matching Engine	Model Name		170F/P Gasoline engine
	Structure Type		Forced air-cooled, four-stroke, swashplate, single-cylinder
	Nominal Power		4 kW
	Nominal Speed		3600 r/min
	Starting Mode		Hand pull start
	Fuel Type		Petrol
Overall dimension(mm)			1680x1000x800 mm
Weights			70kg
Transmission mode			Gear
Connection mode			Direct connection
Adjustment of handrail		Horizontal direction	0 °
		Vertical direction	100°
Knife and roller		speed	Fast gear F:127 r/min Slow gear S:83 r/min
		Maximum turning radius	180 mm
		Total number of knives installed	24
Type of rotary ploughing knives			Dryland Knife
Main clutch		Type	Friction blade type
		Condition	Normally open
Ploughing width			1000 mm
Ploughing depth			≥100 mm
Working speed			0.1~0.3 m/s
Hourly productivity			≥0.04 hm²
Fuel consumption per unit of working area			≤35 kg/hm ²

Detailed Photos

★ Adapt to high-intensity work
For long time and high intensity use of the microtiller, the large fuel tank can meet the demand and ensure the smooth running of the work.
★ High Quality Muffler and Air Filter
The muffler can effectively absorb and attenuate the noise when the engine is running, reduce the noise interference to the operator and the surrounding environment, and thus improve the working efficiency.
The good filtration effect of the air filter helps to maintain the best combustion state of the engine, thus enhancing the power performance and working efficiency of the microtiller.
★ Simple and Reliable Structure
Air-cooled engines have a simpler structure because they do not require additional cooling systems, such as tanks, water pumps and other components. This not only reduces the weight of the engine, but also reduces possible points of failure and improves overall reliability.
★ Convenient and Fast
The simple design of pull-start allows the user to start the engine with a single pull, which is more direct and quicker than the electronic start method.

Company Profile
Chongqing Eagle Sino Machinery Co.,Ltd, specializing in the production of power tillers, power weeder, cultivator, water pump, generators, brush cutters is located in No. 178 longtang dadao, longshui, dazu, chongqing, China. With a commitment to quality and innovation, we have established ourselves as a leading manufacturer in the agricultural machinery industry. Our factory covers an extensive area and is equipped with advanced production facilities and technologies. Our state-of-the-art assembly lines ensure efficient and precise manufacturing processes, allowing us to meet the growing market demand. Our team of highly skilled engineers and technicians possess extensive expertise in the design and development of micro tillers.
They constantly strive to improve the performance, durability, and functionality of our products to provide farmers with reliable and efficient tools for their agricultural operations. In addition to our focus on quality, we also place great emphasis on customer service. Our dedicated sales and support teams are always ready to assist customers with their inquiries and provide prompt after-sales support. With years of experience and a passion for excellence, our products are dedicated to delivering high-quality products and services to customers around the world, contributing to the modernization and efficiency of agricultural production.
Packaging & Shipping
FAQ
Q1:1 Do you support OEM/ODM?
A1:Yes.We can offer OEM/ODM service.
Q2:Are the engines of rotary tiller machines customizable?
A2:Yes. We can customize the engine according to customer's design.
Q3:What is your MOQ of power tiller?And how long is your processing time?
A3:1 sets. If there is no stock, it will be 10-20 working days, if there is stock, it can be sent out immediately.
Q4:How long is your warranty?
A4:1 year or 6 months warranty whichever comes first except the wearing and tearing parts.
Q5: What are your terms of payment?
A5: For large purchases, we can accept 30% deposit and 70% final payment when the goods are ready.
Q6: How do you ship and how long does it take to get there?
A6:We usually ship by express or ocean freight, other shipping ways are also available.
Q7:How do you handle product failures?
A7:First of all, our products are manufactured under a strict quality control system. And there is a strict inspection process before shipment. The rate of defective products and low. For defective batches, we will repair and resend them to you, or we can discuss a solution, including a re-recall, depending on the actual situation.
