1080P Mobile Digital Video Security Camera Recorder

Product Description

Overview

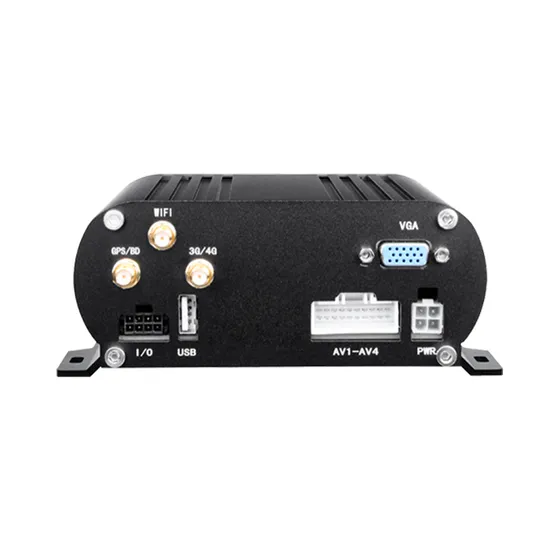

Dianwei SVN-A6H42G is a functional Mobile Digital Video Recorder specially designed for vehicle video surveillance and remote monitoring. It has a high-speed processor and embedded operating system, combining with the most advanced H.264 video compression / decompression technology, 3G/4G network, GPS positioning technology, as well as WIFI. It supports not only video recording in 1080P, 720P, AHD, D1, HD1 and CIF formats, but also vehicle travel information recording and wireless data upload. With center software it also achieves alarm linkage central monitoring, remote management and playback analysis. It is easy to use with simple design, multi-functions, HDD+SD card, superior anti-vibration, flexible installation and high reliability.
Key Features
Supports 4 channels AHD 1080P
Supports GPS for location tracking
Supports WIFI for video files download, optional.
Built-in 3G/4G for live view and remote management
VGA output standard
Built-in G-sensor Technical parameters

Model	SVN-A6H42G
Item	Parameter
OS	Linux
Video Compression	H.264
OSD	date/time, vehicle ID, etc
Graphic OSD	Connect to external monitor, use mouse to set parameters
Video&Recording
Video Input	4CH 1080P AHD, 4pin Aviation Din, 1.0Vp-p, 75Ω
Video Output	1CH output+VGA output, 1.0Vp-p, 75Ω, 1CH/4CH
Preview	1/4ch split display, Support Event alarm, Rear view full display function
Resolution	4CH 1080P, and 720P,D1,HD1,CIF optional
Image quality	0-7 levels adjustable (0 is the best)
Recording Mode	Boot up/Manual/Schedule/Alarm
Audio
Audio input	4CH
Audio output	1CH
Compression	G.726 , Speed 8KB/s
Alarm Input	4CH
Alarm Output	1CH
Serial Interface	1CH RS485 (can be expansible to 2ch RS485 and 2ch RS232)
Wireless transmission	Optional, 3G/4G,WCDMA,CDMA2000,TDD-LTE,FDD-LTE....
Position / G-sensor	GPS optional ,built-in G-sensor,Playback of the route
Storage	Maxium 1*2TB HDD, 1*256GB SD card
Playback
Video search	by time, mode, etc to search
playback	4CH playback , 2X, 4X,8X, 16X forward and backward
Safety management	user password, admin password, support screen lock.
Expanding function
TTS	Support TTS voice broadcasting
Serial expansion	Can support advertisement screen, PTZ, oil sensor, etc
Power and consumption
power management	wide voltage adaption, support timely open-shut, delay function.
Input voltage	DC:+8V - +36V
Output voltage	+12V@1.5A,+5V@1.5A
Power protection	can automatically save the video when sudden power off to ensure the protection of the file.
consumption	Working state<14W , idle<0.5W
Working environment
Temperature	-20ºC - +70ºC
Humidity	20% - 80%
HDD model
Dimension	162mm*180mm*50.5mm
Weight	Approx. 2.35KG (without HDD)
