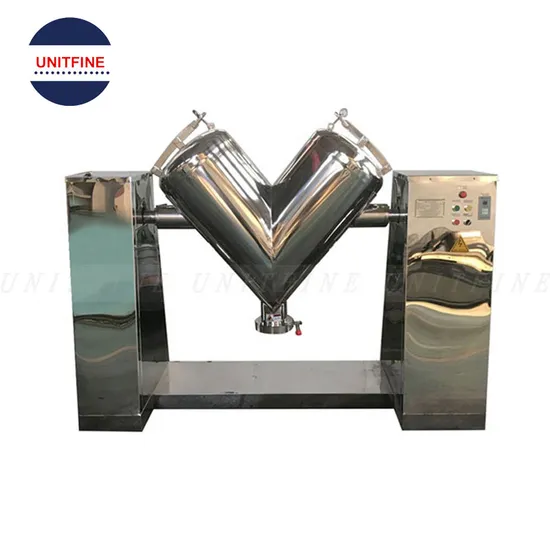

Unitfine Good Quality V Type Blender

Product Description

Product Description>>>
It has the characteristics of simple structure, easy operation, convenient maintenance, fast speed, and good mixing effect, etc. It is widely used in magnetic material, powder metallurgy, pharmaceutical industry, etc. , Chemical, food, electronics, ceramics, and other industries, is ideal hybrid equipment.
working principle:
This equipment absorbs the advantages of similar foreign products to design, the use of mixing machine two cylinders of unequal length, the line into the asymmetric, when the mixer when the material from the decomposition to the combination of decomposition, from the combination to the material plane, there are different Lateral force, but also to promote the lateral exchange of materials, each rotating a circle of about 25% of the lateral force of the material from one barrel to another barrel, so that the material radial mixing, decomposition combination of each other, the material to achieve a very uniform mixing effect.
Features:
No mechanical extrusion and strong wear and tear can maintain the integrity of the material particles. Inside and outside the barrel polishing, are designed to smooth transition, no dead ends, to avoid cross-contamination of materials, with the butterfly valve outlet,
The machine can also be installed according to the user needs mixing device, material humidification system, gas protection device.
Characteristics:
The machine has the features of the special construction, high effect, no dead angle, uniform mixture.
The machine can also increase to blend the function compulsorily.
It can mix thin powder and more than two form powders including the materials that contain water.
It can get a good result of admixture (meaning that little admixture additives).
Models Available>>>

Model	V-300	V-500	V-1000	V-1500	V-2000	V-2500	V-3000	V-4000
Full volumem3	0.3	0.5	1.0	1.5	2.0	2.5	3.0	4.0
Production capacity kg/batch	60	100	250	400	600	800	1200	1500
Mixing time min	6-10	6-12	6-15	8-20	8-20	8-20	8-20	10-30
Turning speed of cylinder rpm	12	12	12	12	12	12	12	10
Power kW	1.1	2.2	4	4	5.5	7.5	11	15
The overall size of mainframe L*W*H(mm)	1850*880 *1800	2200*1100 *1900	2700*1500* 2100	2950*1650 *2200	3250*1650 *2400	3450*1850 *2600	3650*1950 *2800	3800*2150 *3050
Weight (kg)	310	550	900	1200	1400	1800	2100	2800

FAQ Q: What information should be provided in order to get a proposal or quotation? A: Our V shape mixer can be customized. To work out a detailed proposal or quotation, we have to know the following information: 1)The particle size of products 2) Bulk density of products 3) Mixing capacity 4) Construction material: SUS304 or SUS316L Q: How the machine will be packed for delivery? A: The mixer is packed in a plywood box for shipping
