Renovl SAE 100 R5 13.0mm Outside Diameter Textile Covered Air Compressore Oil Hose

Product Description

RENOVL SAE 100 R5 13.0mm Outside Diameter Textile Covered Air Compressore Oil Hose
Product Description
SAE 100 R5 Textile Covered Air Compressore Oil Hose
Inner rubber layer: NBR nitrile rubber
Reinforcement layer: One layer of copper-plated steel wire braid
Outer rubber layer: One layer of terylene filament braid
Temperature range: -30ºC~+135ºC
Color: black or blue
Application: Suitable for small spaces, use petroleum-based hydraulic oilProduct Parameters

SAE 100 R5 Textile Covered Air Compressore Oil Hose
SIZE I.D			0.D	W.P		B.P			B.R		L	W.T
dash	inch	mm	mm	bar	psi	bar	psi		mm		m	kg/m
-3	3/16"	4.8	13.0	210	3045	840	12180		75		50-100	0.22
-4	1/4"	6.3	14.6	210	3045	840	12180		85		50-100	0.26
-5	5/16"	7.9	17.0	157	2270	628	9130		100		50-100	0.31
-6	13/32"	10.3	19.3	140	2030	560	8120		115		50-100	0.36
-8	1/2"	12.7	23.3	122	1770	488	7100		140		50-100	0.49
-10	5/8"	16.0	27.2	105	1520	420	6090		165		50-100	0.65
-12	3/4"	19.1	28.0	80	1160	320	4640		160		50	0.78
-14	7/8"	22.2	31.2	56	810	224	3250		185		50	0.85
-16	1"	25.4	31.4	50	725	200	2900		300		50	0.89
-18	1.1/8"	28.6	38.0	43	620	172	2494		360		60	0.95
-20	1.1/4"	31.8	41.2	39	565.5	156	2262		420		60	1.00
-22	1.3/8"	34.9	44.3	34	493	140	2030		480		60	1.10
-24	1.1/2"	38.1	48.2	30	435	120	1740		500		60	1.20
-29	1.13/16"	46.0	56.1	24	348	96	1392		530		60	1.42
-32	2"	50.8	65.8	24	348	96	1392		560		60	1.65
-38	2.3/8"	60.0	75.0	14	200	56	840		610		20	1.90

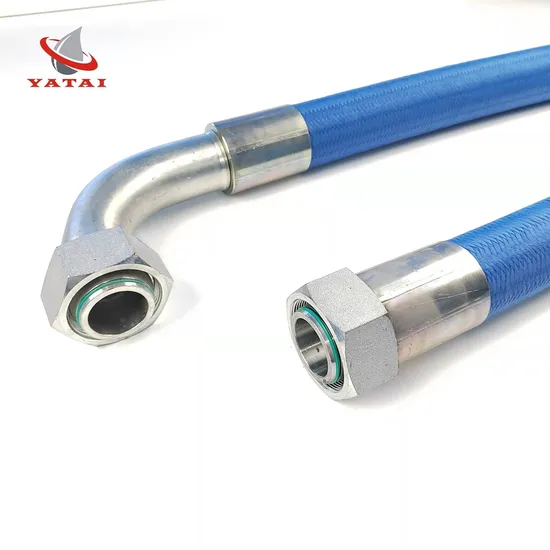

Detailed Photos
Company Profile
FAQ
Q1. How can we guarantee quality?
A1.Always a pre-production sample before mass production.
Always final Inspection before shipment.
Q2. What is your sample policy?
A2.We can supply the sample if we have ready parts in stock, but the customers must pay for the sample and courier costs.
Q3. Can you produce according to the samples?
A3: Yes, we can produce your samples or technical drawings. We can build the molds and fixtures.
Q4. Why should you buy from us not from other suppliers?
A4.For many years, we have been committed to the research and development of rubber and plastic products. Our R&D team has over 20 years of R&D experience. All of our products are produced directly from the factory. We accept OEM and ODM!
Q5.What are your main products?
A5.Our main products are all kinds of rubber hoses including Hydraulic hoses, air hoses, welding hoses, sandblast hoses, suction and discharge rubber hoses, and PVC hoses, including PVC Lay flat Hose,
Q6. Could we pay a visit to your factory?
A6.Yes, you are always welcome to visit our factory.
