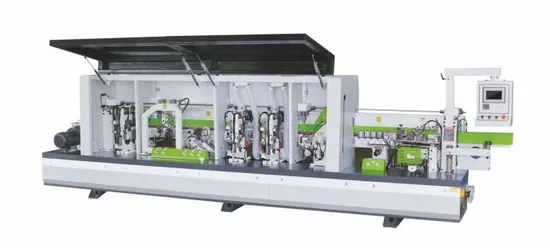

Woodworking Machinery Edge Banding Machine for Wood Furniture Fz-450d
| US$10,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FZ-450D
Type
Linear Edge Banding Machine
Edging thickness
0.4-3mm
Automatic Grade
Automatic
Panel Feeding Speed
20m/min
Certification
CE, ISO
Panel Thinkness
10-60mm
Min.length panel
120mm
Min.width panel
80mm
Manufacturing Principles
Glue Tank Underneath
Customized
Customized
After-sales Service
Video Call
Motor Power
14kw
Overall Size
6800*1100*1600mm
Feed Speed
12-20m/Min
Panel Thickness -60mm
10-60mm
Min Panel Width
80
Drilling Way
Infrared Induction Triad, Wooden Pin Hole
Min Hole Diameter
8mm
Working Pressure
0.8MPa
Voltage
380V/50Hz
Min Panel Length
100mm
Transport Package
Wooden Package
Specification
6800*1100*1600mm
Trademark
sosn
Origin
China
HS Code
84659900
Production Capacity
100sets/Month
Product Description
Product DescriptionWoodworking machinery edge banding machine for wood furniture FZ-450D
Product Parameters
| model | FZ-450D | ||
| Total power | 11.13kw | ||
| Overall dimension | 6100*1100*1600mm | ||
| Feed speed | 12-20m/min | ||
| Sheet thickness | 10-60mm | ||
| Edge band thickness | 0.4-3mm | ||
| Sheet width | ≥80mm | ||
| Working pressure | 0.8MPa | ||
| weight | 1600kgs | ||
Detailed Photos
Packaging & Shipping
1.After you purchased a product from SOSN, it's not the end of the business but the beginning of our service. We promise to our customers that we will provide persistent technical assistance.
2.After the machine reached you, Please check the machines to see if they are going well, if there is any question, please feel free to contact with us, and also if any problem in the later daily using, please also do not hesitate to contact with us, we will try our best to give you the solution within two working days.
3.Therefore, you don't need to worry about the after-sale maintenance. warranty one year .if you have any questions about machine,please contact me
With a professional sale and technique group, we can assure you a considerate and professional service experience
Trade processing:Actively solving problems during manufacturing and delivery, assure you a best price.
