Automatic Edge Banding Machine Edge Bander Made in China

Product Description

Woodworking Edge Banding Machine enchapadora with corner rounding for kitchen Cabinet furniture.
used for the linear sealing of PVC, wood panel and veneer, acrylic,etc.

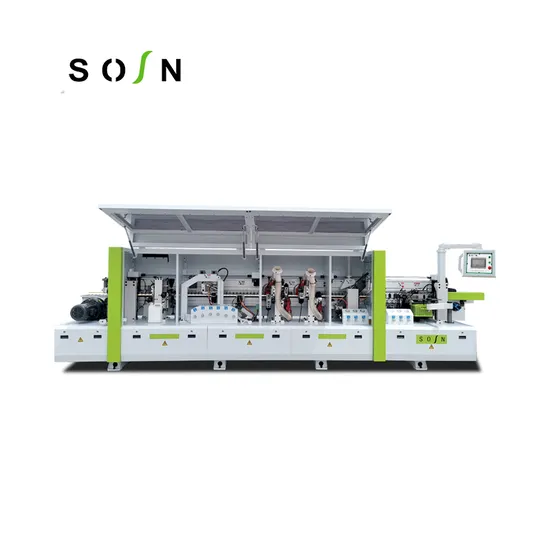

1), edge banding machine picture.
2). Application of Edge banding machine
PVC Edging Banding Machine is used in banding edge of desks,kitchen cabinet,wardrobe,and straight line furnitures;with powerful functions:Edge feeding;Sticking,End cutting,Front-back trimming,Roughing,Fine finishing,Scraping and Buffing,highly improved the working efficiency and quality of door, cabinet, wardrobe, office furniture,room furniture processing.
3).Functions:gluing + end cutting + rough trimming + fine trimming +corner rounding+ scrapping + buffing.
---Touch screen:Delta or shihlin of taiwan
Woodworking industry's leading brand touch screen, Quick response, avoide accidental touch.
--Gluing
6-wheel pressing are more precise than 4 wheels, glue line Slightly non-running belt, firm fit, different tape can be easily transported, optional cylinder control the glue switch, stable glue quantity, uniform thickness
--End cutting
end cutting of edge banding machine is to cut off the excess edge banding.
gas Cylinder with 2 pressure regulating valves and1 pressure relief valve) air pressure, More stable, more stable all together
--Rough trimming and fine trimming
Adjust knife by the digital meter, easy to operate, six Edge alloy flat knife trims off the excess edges
---Corner rounding:
Trim the four corners after sealing into small arcs and rounder Slippery and not stingy.
Self-designed tracking movement and gas path design Make the contour chamfering action more stable.
--Scrapping
The super hard alloy R R knife scrapes the fine lines of the edge banding strip, Make it round.
--buffing:
Quickly polish the edge banding Polished, smoother and more beautiful
4)technical parameter:

model	FZ-450D
Total power	11.13kw
Overall dimension	5700*1100*1650mm
Feed speed	12-20m/min
Sheet thickness	10-60mm
Edge band thickness	0.4-3mm(R3 cutter)
Sheet width	≥80mm
Working pressure	0.8MPa
weight	2000kgs

5).Features of the Edge banding machine
a,Edge Banding Material:PVC, Melamine,ABS,Veneer,Solid Wood Strip,etc
b,Workpiece:Plywood, Fire board, MDF board,Solid Wood,Particle board,etc.
c,imported quanlity engines and electric components.
d.serialized products,a wide range of selection for customers.
e.high precision&efficiency.
6).The product made by our edge banding machine.
Optional: double glue system, PUR gluing, hogging, automatic control of PVC thickness adjustment.
7)delivery and loading :
NOTE:
1. We can arrange shipment for you if you need.
2. We guarantee the machine body for one year, three months for easy-broken parts.
3. Package: strong stretch film or standard export wooden case package.
4. Delivery time:20-25 days after getting the deposit.
Reasons to choose SOSN:
1: professional team--as much as possible to meet your needs.2: quick delivery--timely and effective.3: excellent after-sale services--no worries anymore.4: friend partner relationship--a win-win cooperation.
We have auto, semi-auto and manual Edge banding machines for your choice.
With professional experience for woodworking machines, we are your trusted supplier, pls contact me to start our cooperation
