Lab Mini Dry Wet Spinning Machine Systems
Product Description

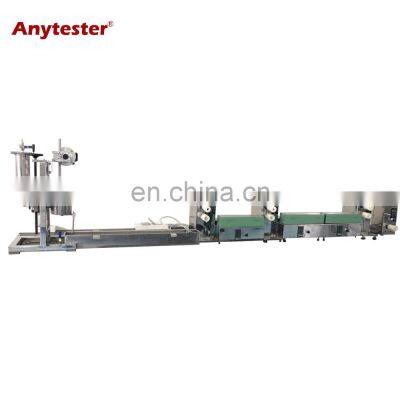

Product DescriptionProduct DescriptionAT235 Bench-top Wet Spinning Machine is special design for researching new material in the field of textile, macromolecule and other material. It consists of mixing tank, dosing pump, filter, spinneret, coagulating bath, drawing roller, heating bath, drawing roller, setting bath, drawing roller and winding.Specification Model AT235 Mixing tank 1L or customized, 316L stainless steelSample volume200~ 600ml or customizedVacuum pump0.18kWDosing pump flow rate0.66CC/revDosing pump power180W Dosing pump reducer1:60 Spinneret1Spinneret plate 100 holes, hole dia.: 0.07mmMaterial: tantalumThe Whole line length5000mmPower supply200V, 50Hz Coagulating bathSize1000*160*160mm Heating power0.6kWMaterial316L stainless steel Drawing rollerMaterialNylon or 316L stainless steelSizeØ50×80mmReducer1:10Motor power25wRoller speed2~40m/min adjustable Heating bathTypenon-contactLength400mmHeating power250WTemp. range20~150℃SensorPT100 Setting bathTypenon-contactLength800mmHeating power250WTemp. range20~150℃SensorPT100 WinderSpeed2-40m/minSizeØ50×80mmTransverse displacement55mmFutures★ 316l Stainless steel frame, durable and nice★ Mini size, save space★ It can simulate the whole process★ Thermal system for mixing tank is selectable★ Heating bath can adopt air heating or water heating, it's selectable.★ The whole line adopt quick joint connecting, it's easy to assemble.Related ProductsAT206 Laboratory Ring Spinning MachineAT225 Laboratory Melt Spinning Machine AT247 Automatic Air-Jet Sample LoomAT241C Automatic Single Yarn Warping MachineOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productContacting Us ERIC QINWebsiteMobile Phone+86 188 5510 5986Whatsapp+86 188 5510 5986Skype eric-qlkWechat+86 188 5510 5986
