Half Fifi System 1200m3 External Fire Fighting System with High Quality Good Price
| US$20,000.00-60,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
GR-Half Fifi System
Alarm Valve Type
Deluge Valve
Automatically Opened and Closed Repeatedly
Can Automatically Opened and Closed
Open Fire Sprinkler System Type
Water Spray System
Closed Fire Sprinkler System
Wet Fire Sprinkler System
Dry Alarm Valve Type
Enclosed Type
Wet Alarm Valve Structure
Butterfly Valve Type
Alarm Valve Diameter
200mm
Nozzle Flow Coefficient
115
Deluge Valve Type
Double Disc Type
Total Capacity
600~9600m3/H Fifi System
Fire Monitor
600~1200m3/H
Fire Pump
600~2400m3/H
Certification
CCS/BV/ABS
Diesel Engine
Cummins/Weichai/as Per Request
Type
External Fifi System
Material
316L
Medium
Seawater/Water/Afff Foam
Water Curtain System
Optional
Control
Local and Remote Control
Transport Package
Plywood Case
Specification
CCS, BV
Trademark
GR
Origin
China
HS Code
8531100000
Production Capacity
100sets Fifi System
Product Description

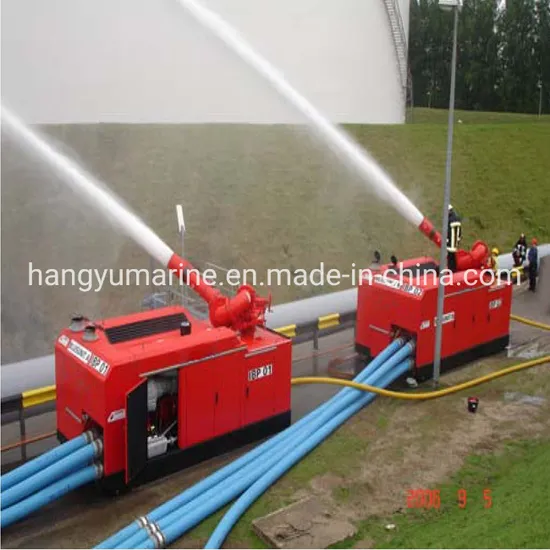

Half Fifi System 1200m3 External Fire Fighting SystemSpecifications:
1.Firefighting equipment Approval:ABS,CCS,BV etc
2.Fire fighting equipment material :stainless steel
3.Capacity of fire monitor/fire pump : 160m3/h,180m3/h ,360m3/h ,600m3/h , 900m3/h , 1200m3/h , 3600m3/h ,etc
4. Firefighting equipment Type:Supply external Fire Fighting Systems , FiFi1/4,FiFi1/2, FiFi 1, FiFi 2 , etc
5.Fire Fighting System Engine:diesel Engine or the demands you need
6.Fire fighting equipment Include:fire pump,fire monitor,with diesel Engine
7.Firefighting equipment color:red
Features:
1)Type of FIFI system: FiFi1 , FiFi2. FiFi3 , FiFi 1/2 , FiFI1/4
2)Fire Monitor Quantity:1~2PCS
3)Fire Pump Quantity: 1~2PCS
4)Fire Monitor capacity:300M3/H X2 Or 600M3/H X 1
5)Fire Pump Capacity: 300M3/H X2 Or 600M3/H X 1
6) Driven Engine brand:CUMMINS,CAT,WEICHAI or other engine brand
7)Include remote control system
The external fire fighting system Technical Parameters
| Class Notation | FiFi1 | FiFi2 | FiFi3 | |||
| No. Of Monitors | 2 | 2 | 3 | 4 | 3 | 4 |
| Monitor capacity(m3/h) | 1200 | 3600 | 2400 | 1800 | 3200 | 2400/2500 |
| No. Of Pumps | 1-2 | 2 | 2-4 | 2 | 2-4 | |
| Total pump capacity (m3/h) | 2400 | 7200 | 7200 | 9600 | 9600/10000 | |
| Throw length (m) | 120 | 180(from bow) | 150 | 180(From bow) | 150 | |
| Throw height (m) | 45 | 110 at 70m | 70 | 110 at 70m | ||
Similar Products:
1.FiFi Class 2 System 7200m3/h
Diesel Engine Driven
Fire Pumps: 2X3600m3/h
Fire Monitors:4X1800m3/h@150m,
Remote Control System
2.FiFi Class 1 System 2400m3/h
Diesel Engine Drivenor Electric Motor Driven
Fire Pumps: 2X1200m3/h or one 2400m3/h
Fire Monitors:2X1200m3/h@120m
Remote Control System
3..FiFi 1/2 System
Diesel Engine Driven or Electric Motor Driven
Fire pumps: 1200m3/h
Fire Monitors:2X600m3/h@120m or 1X1200m3/h@120m
Remote Control System
4.None Classed Fi-Fi System
Diesel Engine Drivenor Electric Motor Driven
Fire pumps: 2X300m3/h@145m
Fire Monitors:2X300m3/h@85m
5. None Classed Fi-Fi System
Remarks:
If you are interested in our FiFI system, please can you confirm following information :
1. Capacity of the Fire monitor for Fire Fighting System?
2. Fire Pump Capacity ?
3. Whether need the diesel engine for fire fighting system or nt?
4.Any special brands demands for diesel fire pump engine?
