2m 3m 3.5m Width 70HP 80HP 90HP 120HP Tractor Towed 540 R/Min Pto Mounted Compost Turner Compost Windrow Turner Chicken Manure Turner Compost Making Machine

Product Description

Product Description

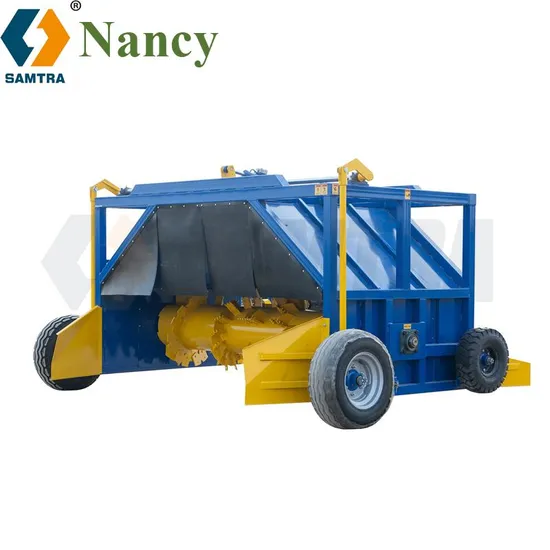

Factory supply ZFQ series 2-3.5m width 50-180HP Tractor mounted PTO drive Hydraulic Manure Compost Turne
Main Features and Advantages:
Compost turner also called as Window Turner, is mainly used to turn & mix raw material or organic fertilizer like: poultry manure, sludge, agricultural waste, agricultural stalks, sugarcane and corn leaves. Besides, the compost turner also helps to accelerate composing speed.
ZFQ series compost turner is powered by tractor, rear PTO shaft mounted and walking besides tractor on working.
also have optional Water tank and Spraying Manifold.
High quality machine have passed professional certification agency test, have ISO, Europe CE certificate, also can apply CO, Pvoc-COC,etc certificates according customers request.
Detailed Photos
Product Parameters
Main Specification and Technical Parameters :

Model	ZFQ200	ZFQ250	ZFQ300	ZFQ350
Matched Tractor Power (hp)	60~70	70~100	100~140	110~160
Max. Windrow Width (mm)	2000	2500	3000	3500
Max. Windrow Height (mm)	1600	1600	1800	1800
Rotor Length (mm)	2000	2500	3000	3500
Roller diameter (mm)	600	800	800	800
Water Tank and Spraying Manifold	Optional	Optional	Optional	Optional
Weight (kgs)	980	2240	2550	2850

Main Usage:
Compost turner, also named as Windrow Turner, Compost shredder, compost mixer, is mainly used to turn & mix raw material or organic fertilizer like: poultry manure, sludge, agricultural waste, agricultural stalks,
sugarcane and corn leaves. Besides, the compost turner also helps to accelerate composing speed.
ZFQ series compost turner is powered by tractor, rear PTO shaft mounted and walking besides tractor on working.
Main Features:
1. Trailed and driven by tractor, competitively priced, higher economic benefits.
2. Rotor height is adjusted by hydraulic cylinder, adaptable to various working conditions.
3. Robust structure guarantees even turning, enhances even heat transfer.
4. Swing cylinder is adopted, so easy to put the machine right behind or at one side of the tractor
5. Optional watering systems inject water, inoculate or liquid slurry into the windrow.
6. Protective rubber flaps to stop flying debris and direct it back to the windrow.

Certifications
Company Profile
Packaging & Shipping
FAQ
1. Q: Compared with the self-propelled compost turner, what's the advantages of the towable compost turner?
A: 1) the towable compost turner can be trailed and driven by tractor, low energy consumption and easy for field transfer.
2) Price is much cheaper, most of customers are able to afford, very suitable for farm owners.
3) The maintenance cost is much lower.
2. Q: What's the warranty period of the compost turner.
A: Warranty period is 12 months.
3. Q: What's the requirements of tractor?
A: The tractor power must be enough for the compost turner. And most important is the tractor must be equipped with creeper gear.
4. Q: What is the package of this machine?
A: ZFQ200 and ZFQ250 can be packaged in steel frame and shipped by LCL.
ZFQ300 anf ZFQ350 need load in 20ft container directly.
Please contact with Nancy if you have any request :))
