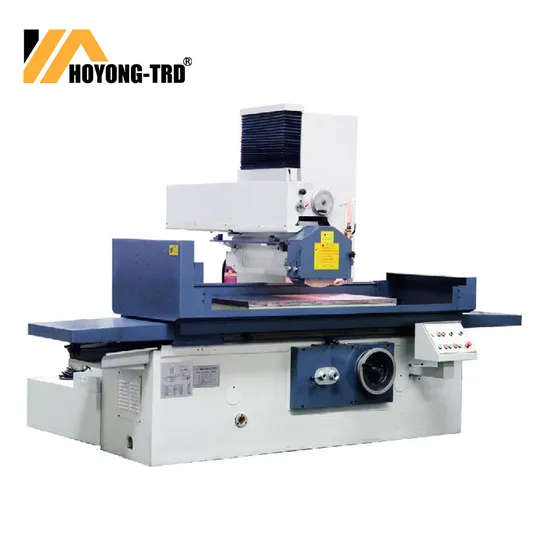

M7163 Heavy Duty High Precision Hydraulic Manual Column Saddle Moving Lifting Magnetic Table Polishing Surface Grinding Machine
| US$12,000.00-16,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M7163
Type
Surface Grinding Machine
Processing Object
Metel
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
T-Slot Number X W
3X22
Table Size
500X1000mm
Power
7.5kw
Chuck Size(Wxl)
500X1000X1mm
Wheel Size
400X40X203
Transport Package
Plywood Case
Specification
3490kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
8460190000
Production Capacity
10 PCS/Month
Product Description
SURFACE GRINDERS MACHINE MANUFACTURER FEATURES:
1.Wheel Head
The wheel head adopts the bearing bush structure, so that to handle the heavy duty machining job. The wheel head vertical movement is controlled manually, it also equips with the rapid elevating unit to reduce the labor intensity and improve the working efficiency.
2.Workable
The worktable longitudinal movement is driven by the vane pump, so that to make the movement stable and fluently with low noise.
3.Accuracy
The accuracy of this machine is 0.005mm and it can meet the routine machining job requirement.
4.Operation
The machine gets the hydraulic auto feed and manual feed in cross feed unit, which is very convenient for operation.
The machine not only works stable and performance reliable, but also gets the advantages of low noise, accuracy stable and easy operation.
SPECIFICATIONS:
| MODEL | UNIT | M7150A | M7163 | |||||
| Worktable size(WxL) | Mm | 500x1000 | 500x1600 | 500x2200 | 630x1250 | 630x1600 | 630x2200 | |
| Max matching | Mm | 500x1000 | 500x1600 | 500x2200 | 630x1250 | 630x1600 | 630x2200 | |
| dimension(W x L) | ||||||||
| Max distance between | Mm | 700 | ||||||
| spindle center line and worktable surface | ||||||||
| Longitudinal moving | m/min | 3-27 | ||||||
| speed of worktable | ||||||||
| T-slot number x W | Mm | 3x22 | ||||||
| Wheel head | Continuous feed speed | m/min | 0.5-4.5 | |||||
| Cross moving | Intermittent | Mm/t | 3-30 | |||||
| feed speed | ||||||||
| Hand wheel | Mm/gra | 0.01 | ||||||
| feed | ||||||||
| Vertical | Rapid | Mm/min | 400 | |||||
| Moving | speed | |||||||
| of wheel head | Hand wheel | Mm/.gra | 0.005 | |||||
| feed | ||||||||
| Wheel Head | Power | Kw | 7.5 | |||||
| motor | Rotation | Rpm | 1440 | |||||
| speed | ||||||||
| Total power | Kw | 12.25 | 13.75 | 15.75 | 13.75 | 15.75 | ||
| Max loading capacity | Kg | 700 | 1240 | 1410 | 1010 | 1290 | 1780 | |
| of worktable | ||||||||
| (with chuck) | ||||||||
| Chuck size(WxL) | Mm | 500x1000x1 | 500x800x2 | 500x1000x2 | 630x1250x1 | 630x800x2 | 630x1000x2 | |
| Wheel size | Mm | 400x40x203 | ||||||
| (ODxWxID) | ||||||||
| Machine dimension(LxWxH) | Cm | 311x190x242 | 514x190x242 | 674x190x242 | 399x220x242 | 514x220x242 | 674x220x242 | |
| Machine Weight | t | 5.78 | 7.32 | 8.78 | 6.86 | 7.85 | 9.65 | |
