CNC EDM Sinker Machine Mirror Garde Finishing

Product Description

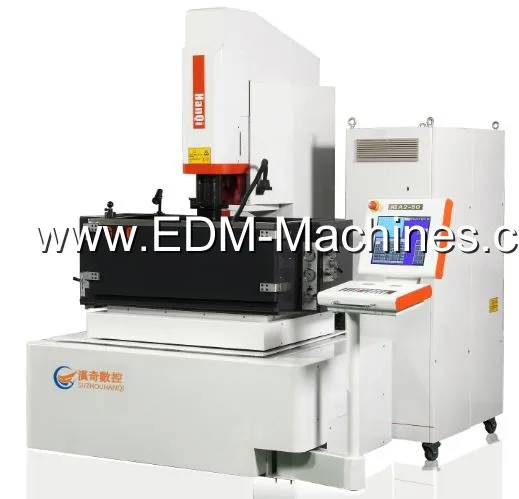

Mirror Grade CNC Die EDM Sinker Machine G30 G series CNC die sinking EDM machine can reach very high speeding but keep good roughness. It is whole design, very friendly controller. It will be very conveniently to control the sinker EDM machine. The machine adopt famous parts like Panasonic servo motor, HIWIN linear guideway, HIWIN ball screw, Schneider electrical to make sure quality. The system with a lot advanced technology for example automatic process function, automatic positioning function, automatic clean arc and short circuit. It includes tool raise high-speed adaptive system, discharge pulse detection system and energy pulse control system to short machining time and get best precision
"T" sharp machine bed, "+" cross worktable structure, high rigidity casting, Hiwin liner guideway, famous parts
This is the base condition for G series CNC die sinking EDM machine.
Material: steel / steel, fine steel/steel, graphite / steel, copper thin copper tungsten / steel, copper and tungsten / carbide copper / aluminum,Graphite / heat-resistant alloys, graphite / titanium, creating a processing copper / steel
1. High Performance
2. Roughness of Ra≤0.08um
3. Electrode Consumption 0.01%
4. CNC Mirror Sinker EDM
5. Economic
6. Efficiency≥500mm3 / min
CNC Die EDM Sinker G30 Specification

Item	Unit	G30	G35	G40	G50
Machine Size	mm	2100*2300*2300	2200*2400*2300	2300*2500*2300	2700*2600*2500
Machine Weight	kg	2000	2200	2300	3500
Machine Power	kw	9	9	9	9
Working area
Worktable Size	mm	600*400	600*400	700*400	800*500
Loading	kg	400	400	500	800
Machining area Size	mm	950*620*360	990*640*450	1280*700*550	1200*840*534
Distance from electrode chuck to worktable	mm	565	600	600	720
X,Y,Y Travel	mm	300*210*270	350*250*270	400*300*270	500*400*352
Power
Max Current	A	50	50	50	50
Max electrode weight	kg	25	100	50	100
Max speed	mm²min	≥500	≥500	≥500	≥500
Drive type		Digital AC servo	Digital AC servo	Digital AC servo	Digital AC servo
Min electrode wear rate		0.01%	0.01%	0.01%	0.01%
Roughness	um	Ra≤0.08	Ra≤0.08	Ra≤0.08	Ra≤0.08
Min drive unit	um	1	1	1	1
Coordinate Quantity		60	60	60	60
System
Input	Touch screen, USB
Display	15-inch LCD screen (TFT-LCD), CRT
Each Axis Compensation	Steps error compensation, backlash compensation for each axis separately
Each axis Resolution	0.4
Technology Standards	steel / steel, fine steel/steel, graphite / steel, copper thin copper tungsten / steel, copper and tungsten / carbide copper / aluminum, Graphite / heat-resistant alloys, graphite / titanium, creating a processing copper / steel
Interpolation Method	lines, arcs, spirals, etc
Processing Discharge Conditions	Registration function 1000 conditions (C000-C999)
Input Range	+ 9999.999 ~ -9999.999
Offset Function	Set 1000pcs offset H000-H999

CNC Die EDM Sinker Part List

No.	Parts			Brands			Orginal
1	linear guideway			Hiwin			Taiwan
2	Ball screw			Hiwin
3	X,Y,Z motor			Panasonic AC servo motor and driver.Power 400W/2500			Japan
4	Main board			AAEON,Industrial garde			Taiwan
5	Capacitance			Kingbox			Japan
6	Circuit breaker			Schneider			France
7	LCD			BOE,Industrial garde			China
8	Power Sup			MeadWell,Industial garde			Taiwan
9	Contactor			T-Verter,Industrial garde			Taiwan
10	Air switch and limit switch			Omron			Japan
11	Communications wire and cable			Hitachi			Japan
12	Connector			Nanshi			China
13	IC chip			NXP / ATMEL / ALTERA
14	Diodes, transistors			Vishay			American
15	Three rectifier bridge			SANTEX			Japan
	Emergency stop			IDEC			Japan
16	Intermediate relay						Japan
17	Opto coupler			Toshiba			Japan
18	Volt-Ammeter			YOKOWAGA			Japan
