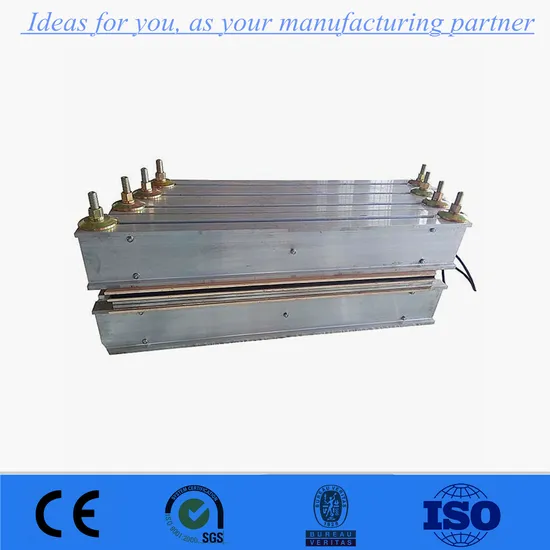

Conveyor Belt Vulcanising Press Machine, Belt Hot Splicing Machine
| US$5,000.00-20,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
LD
Usage
Waterproof Tape, Electrical Insulating Tape, Coating with Adhesive Tape
Performance
Strong Rubber Conveyor Belt
Delivery Time
Within 30 Days After Payment
Transport Package
Plywood Case
Specification
conveyor belt vulcanizing
Trademark
Evertech
Origin
Shandong, China (Mainland)
HS Code
84778000
Production Capacity
10 Unit/Units Per Month
Product Description
Product Description| pecification Sheet of Antai Vulcanizing Machine | ||||||
| Model | Width of Conveyor Belt(mm) | Rectangle Spec (mm) | Heat Plate Size (mm) | Power(KW) | Machine Size(mm) | Machine Weight(kg) |
| ZJL-650 | 650 | 650*830 | 830*800 | 10.8 | 1322*830*585 | 440 |
| 650*1000 | 1000*800 | 13 | 1384*1000*585 | 530 | ||
| ZJL-800 | 800 | 800*830 | 830*995 | 12.7 | 1492*830*585 | 515 |
| 800*1000 | 1000*995 | 15.4 | 1554*1000*585 | 630 | ||
| ZJL-1000 | 1000 | 1000*830 | 830*1228 | 15 | 1692*830*585 | 600 |
| 1000*1000 | 1000*1228 | 18 | 1754*1000*585 | 715 | ||
| ZJL-1200 | 1200 | 1200*830 | 830*1431 | 18.2 | 1922*830*750 | 800 |
| 1200*1000 | 1000*1431 | 22 | 1984*1000*750 | 912 | ||
| ZJL-1400 | 1400 | 1400*830 | 830*1653 | 20.6 | 2142*830*750 | 885 |
| 1400*1000 | 1000*1653 | 24.6 | 2204*1000*750 | 1050 | ||
| ZJL-1600 | 1600 | 1600*830 | 830*1867 | 22.8 | 2382*830*795 | 1130 |
| 1600*1000 | 1000*1867 | 27.2 | 2444*1000*795 | 1325 | ||
| ZJL-1800 | 1800 | 1800*830 | 830*2079 | 25 | 2592*830*900 | 1420 |
| 1800*1000 | 1000*2079 | 30 | 2654*1000*900 | 1630 | ||
| ZJL-2000 | 2000 | 2000*830 | 830*2303 | 27.4 | 2792*830*900 | 1560 |
| 2000*1000 | 1000*2303 | 33 | 2854*1000*900 | 1824 | ||
| ZJL-2200 | 2200 | 2200*830 | 830*2478 | 30 | 2992*830*980 | 1720 |
| 2200*1000 | 1000*2478 | 36.2 | 3054*1000*980 | 2030 | ||
1)Product Type:conveyor belt
2)Related voltage: 380 v(660v). 50 Hz
3)the electric power output:35KW
a) It's most important for the conveyor belt which is used for heavy-duty and long distance material handing.
b) The special equipment for conveyor belt repairing and jointing.
c)Advantages
The quality of the jointing directly effect the working life & working efficiency.It's most important for the conveyor belt which is used for heavy-duty and long distance material handing
d) Fast heating, steady heating temperature
e)Specification
LD technical performance
Suitable for conveyor width:680mm-2400mm
heating plate length: 600mm,900mm and others
Cementing angle:0°:16.7°(according the client's requirement)
Curing working surface temperature≤165°C
Warming time: less than 30 min
Pressurization method: Aluminum beams+ Pressure mold box
Curing pressure 10Bar-12Bar
Cooling way: Fast water cooling
Application of conveyor belt thickness≤40mm
Related voltage: 380v (660V)(AC 3PH 50Hz)
