Heavy Duty Industrial Dust Removal Sprinkler Irrigation Big Gun Agriculture Rain Gun
| US$110.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
DL80
Power Source
Electricity
Drainage & Irrigation Mode
Sprinkler Irrigation Equipment
Pump Type
Immersible Pump
Material
Metal
Ground Drainage and Irrigation Machinery Type
Pumping Irrigation
Certification
ISO9001:2008, CE
Condition
New
Application Field
Agriculture, Forestry
Warranty
1 Year
Nominal Diameter of Water Inlet
80mm
Nozzle Diameter
30mm-40mm
Working Pressure
3-8bar
Flow Rate
58.4m3/H-170m3/H
Range
48-78m
Interface Mode
Flange Interface
Jet Angle of Sprinkler Flow
16 -46 Degree
Product Weight
16kg
Product Specification
120*28.5*34cm
Transport Package
Export Carton
Specification
120*28.5*34cm
Trademark
DElONG
Origin
Xuzhou, China
HS Code
8424200000
Production Capacity
One Hundred Thousand
Product Description

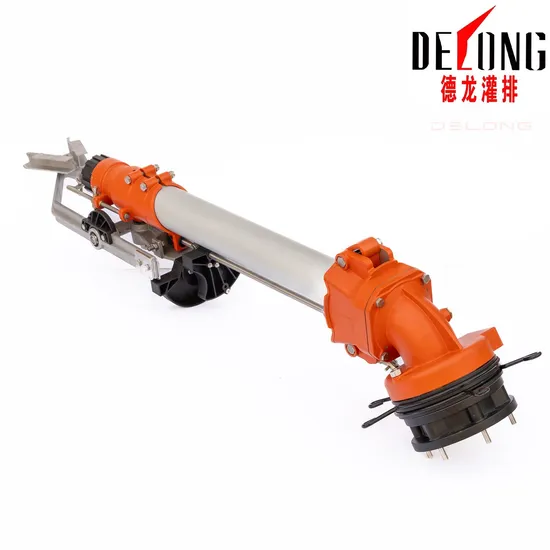

DL 80 elevation adjustable vertical rocker arm spray gun is a large spray gun that our company introduces foreign technology and designs and produces variable injection Angle. According to 0-360, adjust the spraying rotation Angle of the spray gun at will. New operation theory to prevent vibration and rebound to ensure safe work. It is suitable for large and medium-sized winch irrigation machine and large pointer sprinkler machine tail gun, large area irrigation project, stacking field, stadium and pasture, etc., injection Angle adjustable, especially for windy places, as well as areas restricted by low altitude flight and high voltage line. It is also very suitable for industrial dust suppression and dust prevention, especially for the storage yard with special requirements for injection height. Its pressure resistance, sealing performance and stable and reliable operation can meet the requirements of spraying, equipped with a variety of different specifications of nozzles, can meet the needs of different soil, terrain, crops, environment.| U Jet diameter | P Pressure | G Range | Q Rate of flow |
| mm | kg/cm2 | m | m3/h |
30 | 3 | 48 | 58.4 |
| 4 | 52 | 64.6 | |
| 5 | 56 | 75.6 | |
| 6 | 60 | 82.8 | |
32 | 4 | 54 | 76.9 |
| 5 | 58 | 85.9 | |
| 6 | 62 | 94.2 | |
| 7 | 66 | 101.6 | |
34 | 5 | 59 | 97.1 |
| 6 | 64 | 106.4 | |
| 7 | 68 | 114.8 | |
| 8 | 72 | 122.8 | |
36 | 5 | 61 | 108.8 |
| 6 | 66 | 119.3 | |
| 7 | 70 | 128.6 | |
| 8 | 74 | 137.7 | |
38 | 5 | 63 | 121.3 |
| 6 | 68 | 132.9 | |
| 7 | 72 | 143.4 | |
| 8 | 76 | 153.5 | |
40 | 5 | 65 | 134.4 |
| 6 | 69 | 147.3 | |
| 7 | 73 | 159.8 | |
| 8 | 78 | 170.0 |
