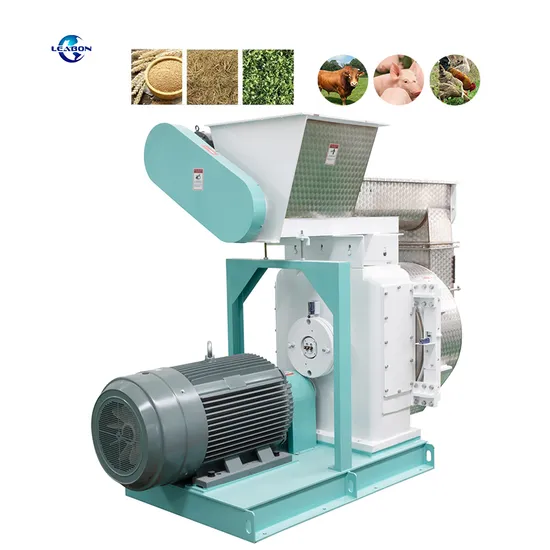

Animal Feed Pellet Machine Automatic Chicken Rabbit Cow Poultry Feed Pellet Mill
| US$1,380.00-6,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
PM/CM/SZLH Series
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Flat Die Pelletizer
Bulking Machine Type
Twin Screw Bulking Machine
Expanding Method
Dry Expansion
Condition
New
Applicable Materials Shape
Granular
Warranty
One Year
Dimension
1.35*1.3*1.6
Weight(Kg)
960
Pellet Diameter(mm)
Φ1.5,Φ2,Φ2.5,etc
Inside Diameter of Ring Die(mm)
304
Revolving Speed of Ring Die (R/Min)
330
Feeding Motor(Kw)
0.75
Power (Kw)
30
Output(Kg/H)
1500-2000
Transport Package
Wooden Box
Specification
1000kg
Trademark
LEABON
Origin
Henan China
HS Code
8438800000
Production Capacity
300sets/Month
Packaging & Delivery
Package Size
135.00cm * 130.00cm * 160.00cm
Package Gross Weight
960.000kg
Product Description
Animal Feed Pellet Machine Aotumatic Chicken Rabbit Cow Poultry Feed Pellet MillProduct Description
Introduction of Feed Pellet Machine
1. Our Pelletizers are used for making wood and feedstuff pellets. 2. We have be approved by European SGS. 3. Advanced and reliable technology.
4. High throughput capacity and high quality pellets.
5. Low-maintenance and service-friendly. 6. Cost-efficient and space-saving.
Product Parameters
Ring Die Feed Pellet Machine
| Parameter/Model | CM-25A | CM-25B | CM-30B |
| Output(kg/h) | 1000-1200 | 1000-1500 | 1500-2000 |
| Power (kw) | 22 | 22 | 30 |
| Feeding motor(kw) | / | 0.75 | 0.75 |
| Revolving Speed of ring die (r/min) | 306 | 306 | 330 |
| Inside diameter of ring die(mm) | 250 | 250 | 304 |
| Pellet diameter(mm) | Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8 | Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8 | |
| Dimension(m) | 1.1*1.15*1.25 | 1.1*1.15*1.25 | 1.35*1.3*1.6 |
| Weight(kg) | 625 | 710 | 960 |
| Model | Main power(kw) | Out-put(t/h) | PowerofConditioner(kw) | Power of screwfeeder(kw) | In-side of rind die(mm) |
| SZLH320 | 37 | 2-3 | 2.2 | 0.75 | 320 |
| SZLH350 | 55 | 3-5 | 3 | 0.75 | 350 |
| SZLH400 | 75/90 | 3-10 | 5.5 | 1.5 | 400 |
| SZLH420 | 90/110 | 3-14 | 5.5 | 1.5 | 420 |
| SZLH508 | 110/132/160 | 6-15 | 7.5 | 2.2 | 508 |
| SZLH558 | 180/200 | 10-20 | 11 | 2.2 | 558 |
| SZLH678 | 220/250 | 25-30 | 18.5 | 3 | 678 |
Flat Die Feed Pellet Machine
| Model | Power(kw) | Capacity(kg/h) | Weight(kg) | Dimension(mm) |
| PM-200B | 7.5 | 200-300 | 230 | 100*430*950 |
| PM-230B | 11 | 300-400 | 320 | 1140*470*970 |
| PM-260B | 15 | 400-600 | 380 | 1200*520*1070 |
| PM-300B | 22 | 600-800 | /450 | 1270*520*1070 |
Spare Parts
More Pictures
Raw Material and Final Product
Feed Pellet Line Display
Packaging & Shipping
Normally, we adopt wooden case or container.If export to European countries,the wooden box will be fumigated.If container is too small,we will use PE film for packing or pack it according to customers special request.
Our transport operators & delivery facilities are ready on time and when the contains arrive at the factory , they are guaranteed to ship according to the scales .
Company Profile
FAQ
| Q1:what's raw material suitable for making feed pellet? ------Corn,soybean,wheat,rice,wheat bran,fish meal,bone powder,meat, alfafa,silage,straw,grass, hay etc. |
| Q2:What's the capacity of your feed pellet machine can be choose? ------The SZLH series have 0.5-1.5T/H,2-3T/H,3-5T/H,3-10 T/H,3-14 T/H,6-15 T/H,10-20 T/H,25-30 T/H to choose from; the CM series have 100-200kg/h, 500-700kg/h, 1000-1200kg/h, 100-1500kg/h, 1500-2000kg/h to choose from. |
| Q3:What's the certification of your feed pellet machine? ------CE Certification. |
| Q4:What's the warranty of feed pellet machine? ------Warranty:1 Year(except spare parts). |
| Q5: What's your payment terms? ------Payment terms: T/T; L/C; Western Union; Money Gram. |
