High Quality Large Heavy Duty Horizontal Lathe Machine with 50 Years Experience (CG61350)

Product Description

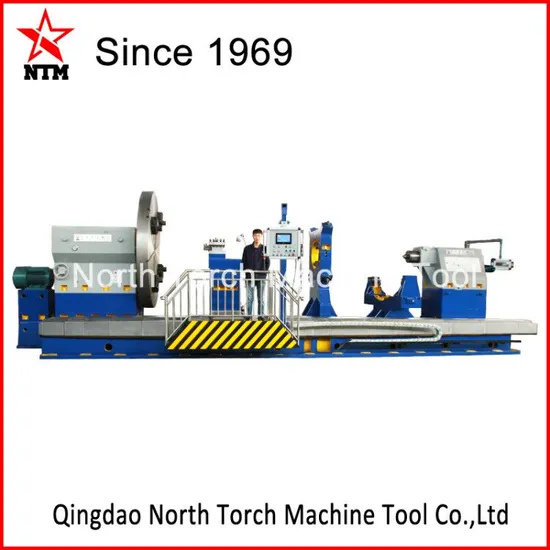

China Professional Heavy Duty Large Horizontal Lathe
For Machining Cylinders, Long Shaft,Tire Mold, Railway Parts,Wheel Hub Turbine,Flange,etc

1. Outstanding Characteristics:
1). Carry Load as Heavy as Possible : Internationally forerunner computation technologies and optimized finite element analysis methods are adopted and the selected materials are suitable for the design .
2.). High Rigidity, Stability and Precision Maintenance: All castings are made of high-strength meehanite HT250. which is particularly suitable for heavy cutting. All large castings stand the test of annealing and vibration aging and internal stress is eliminated, so the overall precision is greatly enhanced and processed parts are found with high geometric accuracy.
3.) One-piece structure made of meehanite, greatly enhancing its abrasion resistance, and the internal force elimination process produces high vibration resistance and considerably enhances stability. The cross-shaped base and rectangular bearing structure ensure high structural stability and permanently stable quality.
4.) The lathe bed is in fixed heavy cutting structure, including rectangular hard rails tested by high frequency heat treatment and high-precision surface grinding (straightness in full stroke<0.05mm).
5.)Turcite-B is pasted on the sliding surface in order to enhance the rail's smoothness and wearing resistance. The widened hard rail design can provide required resistance and stability for heavy cutting.
6.) The headstock, made of high strength and high rigidity keel rib, is in special cage shape, and the gearbox includes class P5 grinding gears, which can provide desirable driving accuracy and greater torque.

7.) Incorporating German AM technologies, the main shaft is made of chrome-molybdenum alloy and proves high precision, high rigid and desirable deformation resistance after rough/finish machining, carbonization, aging treatment and precision grinding. The motor figures high output (26kw) and the max. rev. is 3000RPM. After the main shaft assembling is completed, the entire assembly shall be calibrated by dynamic balance test. The independent lubrication will further enhance the stability of the headstock during operation.
8.) Standard 4 knife library, mounted on a turret used in precision turning.
9.) The tailstock consists of two parts: the upper one includes a sleeve moving mechanism, spindle assembly, and a shaft centerline adjustment mechanism, with a rectangular head in the rear, which is designed to lock the sleeve manually; and the lower one includes a tailstock fast-moving motor and a locking mechanism, with the main shaft installed on the high-precision radial clearance-adjustable double-row cylindrical roller bearing in the sleeve, rendering the high-precision rotating top on the tailstock. However, in order to satisfy certain special requirements of the machining process, it is feasible to transfer the plug board from the flange groove in the front of the sleeve to the groove near the front end of the main shaft in order to fix the main shaft and obtain a dead center.
FANUC ,SIMENS or Chinese Brand system (Optional)
Wider guiderails, three X-rails, One piece body to ensure a higher cutting rigidity.
High configuration and low cost.
Maximize Customer's Profitability under the minimum invest cost.
Application: This series CNC horizontal lathe can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, but also the external/internal cylindrical / conical/ spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body. What's more, it can also realize the constant speed cutting line.
2. Standard Technical Parameters

Name		CG61100	CG61125	CG61160	CG61200	CG61250	CG61300
Description	Unit
Max. Swing Over Bed	mm	1000	1250	1600	2000	2500	3000
Max. Swing Over the skateboard	mm	650	800	1200	1650	1800	2800
Max. Weight of Work-piece	T	10	15	20	20	20	40
Max. Length of Work-piece	mm	3000-12000
Gears of Spindle Speed	/	Infinitely Variable Speed/step-less speed
Range of Spindle Speed	r/Min	10-300	10-200	10-160	4-80	4-80	1.6-63
Chuck Diameter	mm	800	1000	1250	1600	2000	2500
X,Z-Axis Feed Range	mm/Min	0-3000
Horizontal Stroke	mm	500	625	800	1000	1250	1000
Longitudinal Stroke	mm	3000-12000
Main Driving Motor	Kw	11	22	45	75	75	75
Cutting Force (Carriage)	Kn	4	6	20	40	40	60
Sleeve Diameter of Tailstock	mm	180	180	290	290	290	480
Spindle Diameter of tailstock	mm	125	125	160	160	160	240

This kind of horizontal lathe can be re-designed into CNC Milling Lathe, which has both milling and turning functions. If you need milling function, please let us know. This milling lathe picture was photoed at our customer's factory , who manufacture nuclear products.
3. After-sale Service and Maintenance
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. Thanks!
