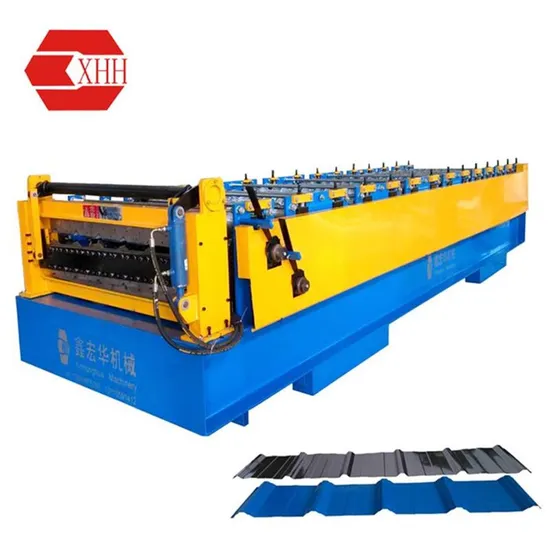

Metal Sheet Double Layer Roofing Machine

Product Description

Detail informations of YX20-860-1050/YX12-900-1100 Double Layer Metal Roof Forming Machines are as follows: Main Accessories: (1) Main Forming Machine; (2) 5 Tons Manual Uncoiler; (3) Manual Pre-cutter; (4) Hydraulic System; (5) PLC Computer Controlling System With Touch Screen (6) Hydraulic Forming Cutter; (7) Run Out Table(3 PCS); (8) Tools; (9) Operation Manual.
Main Technic Data:

1.	Size	YX20-860-1050/YX12-900-1100
2.	Dimension	6800mm/2000mm/1300mm
3.	Wieght	6500KGS
4.	Motor Power	5.5KW
5.	Hydraulic Power	1.5KW
6.	Voltage	380V/50HZ/3PH
7.	Forming Steps	14 steps for YX20-860-1050/9 steps for YX12-900-1100
8.	Working Speed	8-14m/min
9.	Thickness	0.3-0.6mm
10.	Material Width	1000mm,1200mm
11.	Effective Width	860mm,900mm,1050mm,1100mm

Q1.Are you a trading company or manufacture.
1A: We are a factory.
Q2. Do you provide samples ? Is it free or extra ?
2A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.We could offer the sample for free charge
3Q: Where is your factory located?
3A: Our factory is located in Xiamen City, Fujian Province, China. You are warmly welcome to visit us !
4Q: Can you make the machine according to my design or prototype?
4A: Yes. We have an professional designer for working out the most suitable design and production plan for the machine that you are going to book with us
5Q: How can I trust you that machines pasted testing running before shipping?
5A: 1) We record the testing video for your reference.
2) You are welcome to visit us and test machine in our factory.
6Q: Do you provide installing and training overseas?
6A: Overseas machine install and worker training services are optional.
7Q: How is your after sales support?
7A: We provide technical support on line as well as overseas services by skillful technicians.
8Q: Guarantee period:
8A: Within one year since the date of finishing commissioning.
