Fuel Injection Test Equipment Hpi/Smart Injector/Eui High-Pressure Fuel Test Bench

Product Description

Product Introduction

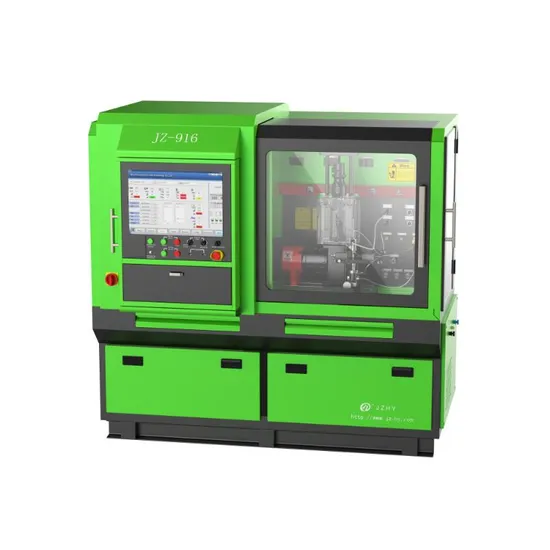

JZ-916 is a versatile and high-capacity test bench that can handle a wide range of fuel system components from the Euro-3 to Euro-6 emission standards. Its automated controls and extensive testing capabilities make it a useful tool for repair and maintenance of modern diesel fuel systems. It can test thousands of injectors and high-pressure pumps, and the experimental data are complete. It can be equipped with optional functions such as:
1. Testing unit pumps and unit injectors
2. Testing medium pressure injectors
3. Testing actuated pumps

Functions Description
Standard functions:
1. Test the piezo injector 2. Test solenoid valve injector 3. Test single pump and pump nozzle 4. Test high pressure common rail pump
Optional Functions:
1. Test the 4-pin injector 2. Test X15, Q60 single pump 3. Test C-ummins HPI actuators 4. Test B-osch 4-plunger common rail pump 5. Test D-ENSO 4-plunger common rail pump
Hardware Configuration:
1. Gear flow sensor 3 pcs 2. Dual ORV configuration 3. Electronic measuring system 4. Common rail pipe with filter function
5. Injection drive and system voltage monitor
Assist Functions:
1. Flow sensor linear calibration 2. Oil nozzle opening pressure flow 3. Fuel tank oil level lower limit alarm 4. High pressure filter clogging reminder
Product Details
Technical Parameters

Technical Parameters
Output	15 KW
Power	3-Phase 4-Wire 380V 50/60HZ
Speed	0~3500 RPM
Rail Pressure	0~2700 Bar
Rail Pressure Precision	±5 Bar
Oil Tank Volume	Diesel: 40L Engine: 20L
Fuel Temperature	40±2ºC
Filter Precision	< 5μm
Gross Weight	1230 kg
Packing Size	2000*1350*1850 mm
Speed Control Model	Converter Control
Temperature Control System	Air Conditioning Heat Dissipation
Nozzle Sensor	Imported Original Elliptical Type Flow Sensor
Fuel Pump Sensor	Imported Original Vane Type Flow Sensor
Language	English, Spanish, Russian,etc
Material	Metal Plate
Painting	Powder Painting, Durable
Color	Green (can be customized)
Logo	Jing Zheng Hong Ye (can be customized)
MOQ	1 Piece
Payment	40% Deposit, the rest paid before shipment
Warranty Time	12 months
Delivery time	30 days after prepaid
Shipping Packing	Wooden Case

Testing Scope
Related Products
Our Company
Exhibition
Why Choose Us
1. Our company has our own maintenance center with an area of 1200 square meters. It has been servicing the diesel fuel engine system for 20 years. Rich maintenance experience, let our products pay more attention to solving the difficult problems in maintenance.
2. Independent design and development team,and produce experience.
3. Almost all important parts of the equipment are come from top suppliers in the industry, such as DRV, common rail tube, CP3 pump, from original of B-osch.
4. Strict QC, good pre-sale and after-sale service, Providing remote assistance services free.
5. Customized according to customer requirements, such as appearance, color, etc.
