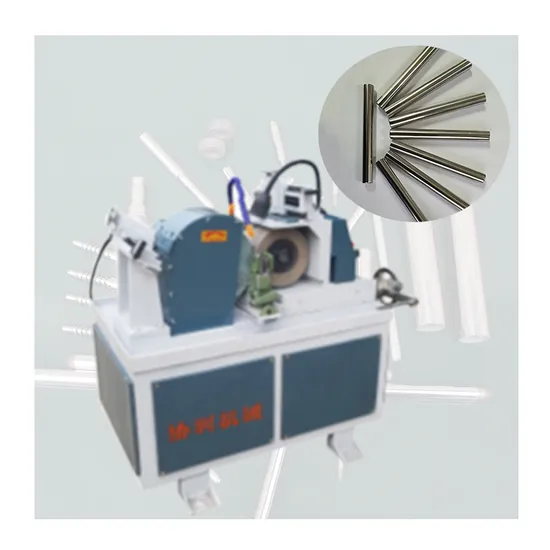

Xieli Machinery Automatic Centerless Grinder Manual Centerless Grinding Machine Price Cheap Grinding Diameter Range 0.6-60mm
Basic Info.
Model NO.
WX-M2-60
Type
Centerless Grinding Machine
Processing Object
Curve
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Manual
Cylindrical Grinder Type
Plunge Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Diameter
0.6-60mm
Grinding Wheel Specification
P350*125*127
Guide Wheel Specification
P250*125*75
Grinding Wheel Rotating Speed
2000r/Min
Guide Wheel Rotating Speed
Stepless5-240r/Min
Machine Dimension
1300*960*1300mm
Machine Tool Weight Approx
1000kg
Transport Package
Packing in Fumigation-Free International Export Wo
Specification
1300*900*1300mm
Trademark
XL
Origin
China
HS Code
8460299000
Production Capacity
50000pieces/Year
Product Description
Product Parameters| Longitudinal feed grinding | Grinding workpiece diameter | 0.8-60mm |
| Grinding length (max) | 1000mm | |
| Horizontal feed grinding | Grinding workpiece diameter | 2-60mm |
| Grinding length (max) | 125mm | |
| Grinding wheel specification | P350*125*127 | |
| Guide wheel specification | P250*125*75 | |
| Grinding wheel rotating speed | 2000r/min | |
| Guide wheel rotating speed | Stepless 5-240r/min | |
| Guide wheel rotary angle | In the vertical plane | -2° -5° |
| In the horizontal plane | -10°-10° | |
| Standard test bar grinding accuracy (ø 20× 75 ) | Roundness | 2 μ m |
| Cylindricity | 3 μ m | |
| Roughness | Ra0.2 μ m | |
| Grinding feed | Feed amount of each grid of dial 0.002mm | |
| Cooling pump flow | 25L/min | |
| Equipment power 5KW | Grinding wheel motor | 4.0kw |
| Guide wheel motor | 0.75kw | |
| Cooling pump motor | 0.09kw | |
| Machine tool lead-in power supply | 380V 50Hz 3P | |
| Machine dimension | 1300*960*1300mm | |
| Machine tool weight approx | 1000kg | |
WX-M2-60 Machine features:
* Width of grinding wheel guide wheel is 125mm, with larger grinding amount and better stabilit.
* Layout of the machine adopts the single - sided movement mode of regulating wheel frame.
* Sand wheel shaft adopts overhang structure, so it is convenient to replace the grinding wheel.
* Guide wheel shaft adopts overhang structure, easy to replace guide wheel.
* Regulating wheel adopts frequency conversion to adjust the speed, which can realize the feed
speed of the workpiece with different diameter.
* Machine tool is equipped with cutting mechanism, which can realize grinding of step surface and
cone surface.
* Machine tool can be equipped with a long workpiece through grinding bracket.
* Machine can be matched with a variety of automatic feeding equipment and automatic manipulator.
Main purpose and scope of application:
* In addition to grinding with grinding wheel, PVA polishing wheel can be used to highlight and
wet polish the workpiece.
* It is mainly used for grinding the cylindrical surface of various ring and shaft parts, and for
semi-automatic and automatic cutting-grinding of various stepped, tapered and cylindrical rotating
surfaces. Product Description
